Specifications

Product Type

RCCB

Brand

ABB

Series

F200

Rated Short-Circuit Breaking Capacity (Icn) acc. To IEC/EN 61009-1

10 kA

Electrical Endurance 10000	No. of Poles (Total) 1P+N	Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Insulation Voltage (Ui) 500 V	Rated Current 80 A	Rated Frequency 50 / 60 Hz
Rated Voltage 230 V	Terminal Type Screw Terminals	Rated Residual Current 30 mA
Type of Residual Current Type A

Conductor Cross Section Solid Core

1 - Solid-Core 35...35 mm²

Mechanical Endurance

20000

Mounting Type

DIN rail

Depth 69 mm	Height 85 mm	Weight 0.200 kg
Width 35 mm	Width in No. of Modular Spacing 2	Pole Width 18 mm

Rated Surrounding Temperature without Derating 30°C	Pollution Degree 2	Storage Temperature -40…+70°C
Operating Temperature -25 … 55 °C	IP Rating IP2X, IP4X

IEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1

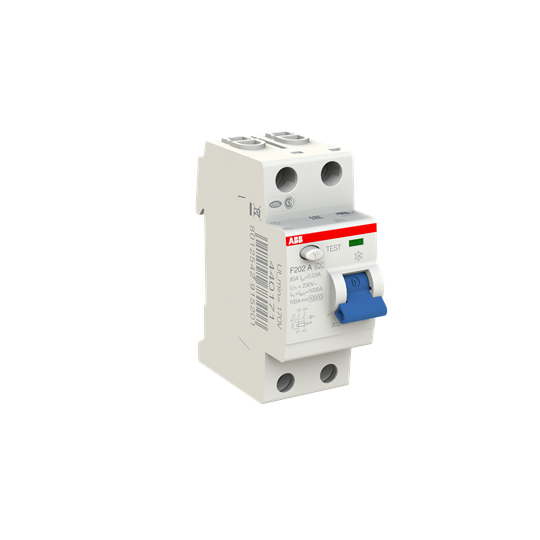

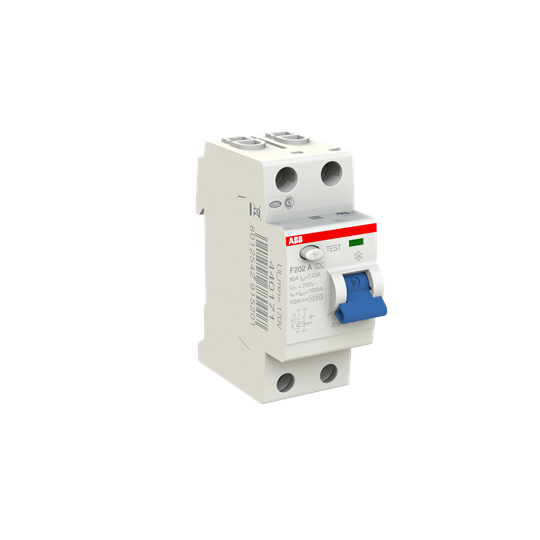

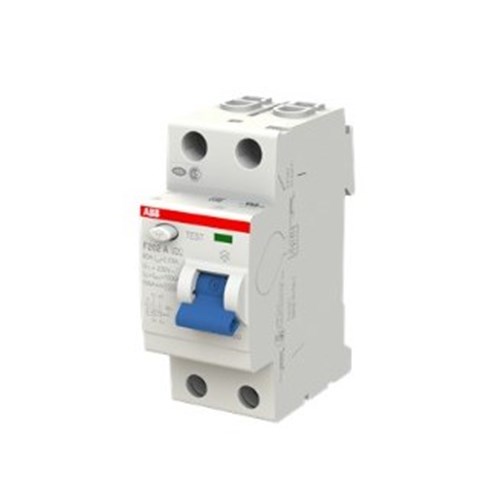

ABB F202A80 Residual Current Circuit Breaker 2-P 80A 10 kA TypeA
