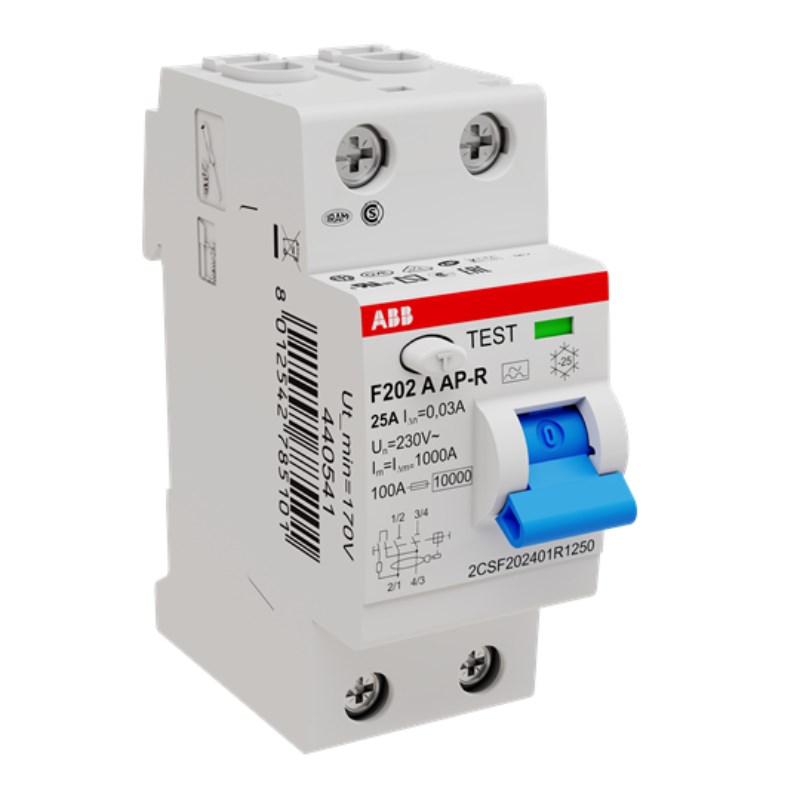

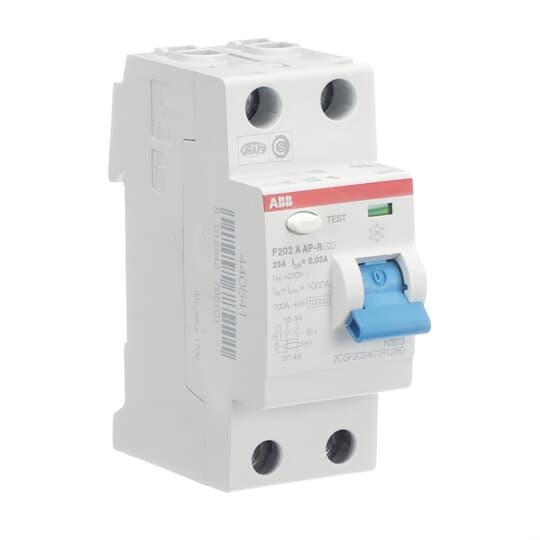

ABB F202A25AP-R Residual Current Circuit Breaker 2-P 25A 10 kA 30mA TypeA

Product Code: F202A25AP-R

  • Rated Current: 25 A, Voltage: 230 V
  • Breaking Capacity: 30 mA, Type A
  • Screw Clamp Terminals, 2 Poles
  • Mounts on DIN Rail, IP20/IP40 Protection
  • Compact Size: 35x85x69 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Residual Current Circuit Breaker (RCCB)
Brand
ABB
Series
F200

Electrical

No. of Poles (Total)
2P
Rated Impulse Withstand Voltage (Uimp)
4kV
Rated Insulation Voltage (Ui)
500V AC
Rated Current (In)
25A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
230/400 to 240/415 V AC
Terminal Type
Failsafe bidirectional cylinder-lift terminals, top and bottom (shock protected)
Residual Current Type
Type A
Rated Residual Current
30mA
Electrical Life
10000 cycle
Mechanical Life
20000 cycle

Mechanical

Housing Type
Insulated housing; RAL 7035

Dimensions & Physical Data

Depth
69mm
Height
85mm
Weight
0.2kg
Width
35mm

Environmental

Rated Surrounding Temperature Without Derating
-25°C to 55°C
Pollution Degree
2
Storage Temperature
-40°C to 70°C
Operating Temperature
-25°C to 55°C
IP Rating
IP4X (housing); IP2X (terminals)

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 61008-1; IEC/EN 61008-2-1
