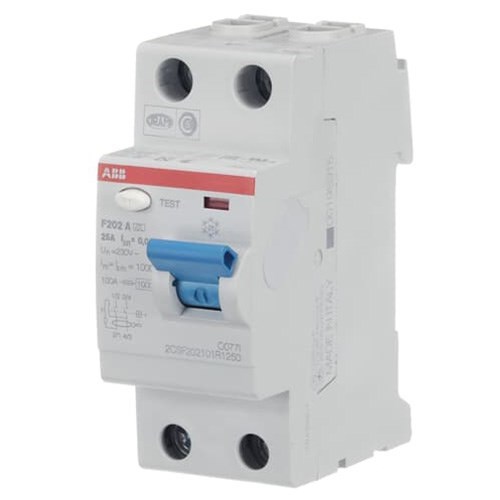

ABB F202A25/0.03 Residual Current Circuit Breaker 2-P 25A 10 kA 30mA TypeA

Product Code: F202A25/0.03

  • 25 A RCCB with 10kA short circuit rating
  • Dual pole design for enhanced safety
  • IP20/IP40 protection suitable for various environments
  • Screw clamp terminals with 2.8 N-m torque
  • Compact size: 35 mm width, DIN rail mountable
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
RCCB
Brand
ABB
Series
F200

Electrical

No. of Poles (Total)
1P+N
Rated Impulse Withstand Voltage (Uimp)
4kV
Rated Insulation Voltage (Ui)
500V
Rated Current (In)
25A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
230V
Terminal Type
Screw Terminals
Residual Current Type
Type A
Rated Residual Current
30mA
Electrical Life
10000
Mechanical Life
20000

Mechanical

Conductor Cross Section Solid Core
1 - Solid-Core 25...25mm²
Housing Type
Insulation group I - II, RAL 7035
Mounting
DIN rail

Dimensions & Physical Data

Depth
69mm
Height
85mm
Weight
0.2kg
Width
35mm
Width in No. of Modular Spacing
2
Pole Width
18mm

Environmental

Rated Surrounding Temperature Without Derating
30°C
Pollution Degree
2
Storage Temperature
-40°C to 70°C
Operating Temperature
-25°C to 55°C
IP Rating
IP2X, IP4X

Safety, Standards & Compliance

Standards and Approvals
IEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1

Other

Rated Short-Circuit Breaking Capacity (Icn) acc. To IEC/EN 61009-1
10kA
