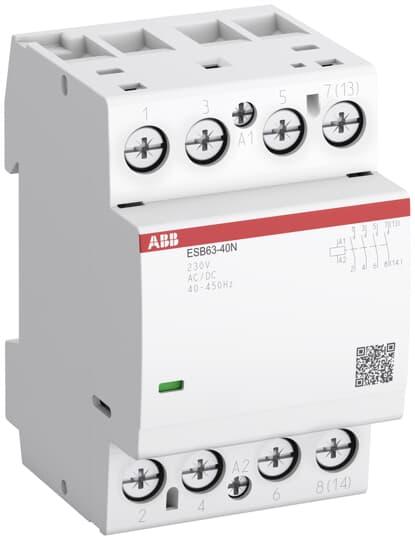

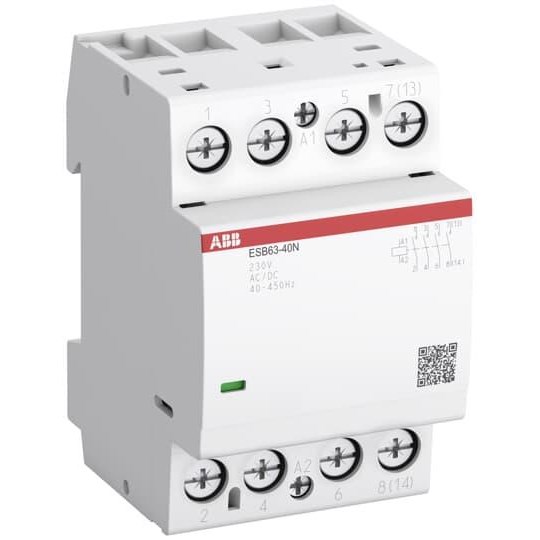

ABB ESB6340N06 Installation Contactor 63A 5kW 400VAC Screw DIN Rail Mount

Product Code: ESB6340N06

  • Supports 400 VAC, 63 A for robust performance
  • Compatible with AC/DC operating voltage
  • Features 4NO contact configuration
  • Easy DIN rail mounting system
  • Compact size: 54x85x65 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Installation Contactors
Brand
ABB

Electrical

No. of N/O Contacts
4
No. of Poles (Total)
4
Rated Control Supply Voltage (Us)
220 V DC400 V AC
Rated Operational Current AC-1/AC7a (Ie)
63
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
65 mm
Height
85 mm
Weight
0.405 kg
Width
54 mm

Environmental

Ambient Temperature
-25 ... +55 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 61095

Other

Rated Operational Power AC-1/AC7a 230V 1 Phase (Pe)
14.5 kW
Rated Operational Power AC-1/AC7a 400V 3 Phase (Pe)
43.6 kW
Rated Operational Power AC-3/AC7b 230V 1 Phase (Pe)
5 kW
Rated Operational Power AC-3/AC7b 400V 3 Phase (Pe)
15 kW
Rated Operational Current AC-3/AC7b (le) 230 V1 phase
30 A

Documents
