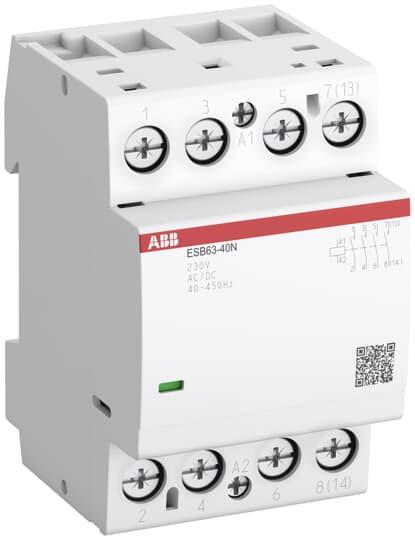

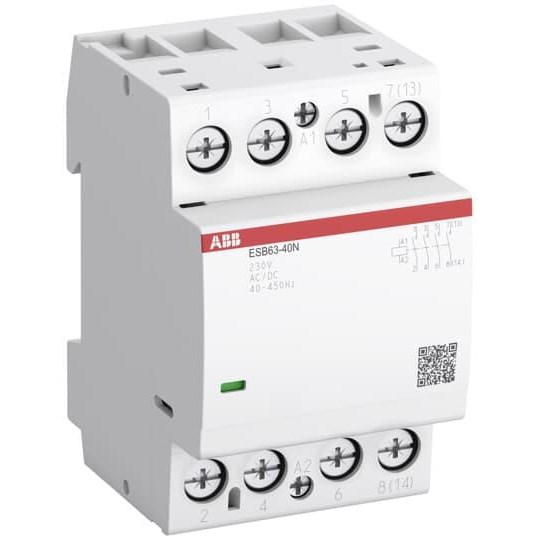

ABB ESB6340N01 Installation Contactor 63A 5kW 400VAC Screw DIN Rail Mount

Product Code: ESB6340N01

  • Suitable for 400 VAC, 63 A applications
  • Operates on both AC/DC voltage types
  • Features 4 normally open contacts (4NO)
  • Compact size: 54 mm width, DIN rail mount
  • IP20 protection for indoor use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Contactors
Brand
ABB

Electrical

No. of N/C Contacts
0
No. of N/O Contacts
4
Rated Control Supply Voltage (Us)
24V
Rated Operational Current AC-1/AC7a (Ie)
(NO) 63A
Rated Operational Current AC-3/AC7b (Ie)
(230V) NO 30A; (400V) NO 30A
Rated Frequency
Control Circuit 400Hz; 50Hz/60Hz
No. of Poles
4NO

Dimensions & Physical Data

Depth
65mm
Height
85mm
Weight
0.405kg
Width
54mm

Environmental

Ambient Temperature
-25°C to 55°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 61095 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L

Other

Rated Operational Power AC-1/AC7a 230V 1 Phase (Pe)
NO 14.5kW
Rated Operational Power AC-1/AC7a 400V 3 Phase (Pe)
NO 43.6kW
Rated Operational Power AC-3/AC7b 230V 1 Phase (Pe)
NO 5kW
Rated Operational Power AC-3/AC7b 400V 3 Phase (Pe)
NO 15kW

Documents

IPD Product Catalogue V17
