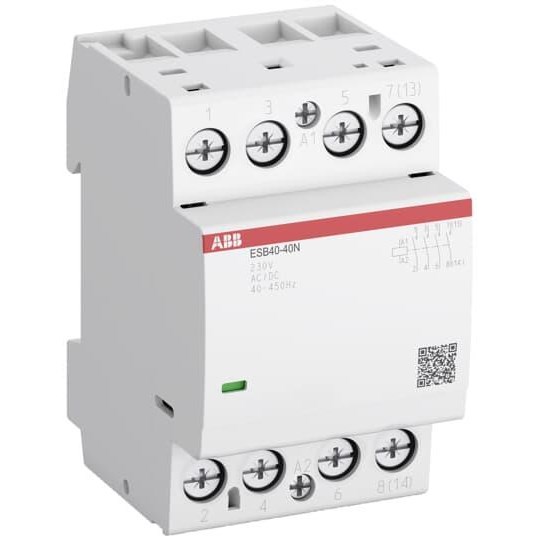

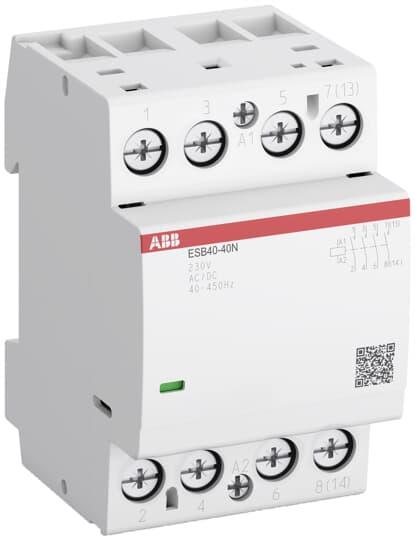

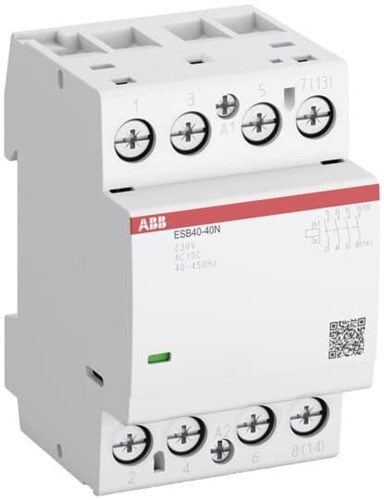

ABB ESB4040N14 Installation Contactor 40A 11kW 400VAC Screw DIN Rail Mount

Product Code: ESB4040N14

  • 40 A rated current for robust performance
  • Suitable for 400 VAC applications
  • Operates on both AC/DC voltage types
  • Compact size: 54mm W x 85mm H x 65mm D
  • Compliant with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Contactors
Brand
ABB

Electrical

No. of N/C Contacts
0
No. of N/O Contacts
4
Rated Control Supply Voltage (Us)
12V
Rated Operational Current AC-1/AC7a (Ie)
(NO) 40A
Rated Operational Current AC-3/AC7b (Ie)
(230V) NO 22A; (400V) NO 22A
Rated Frequency
Control Circuit 400Hz; 50Hz/60Hz
No. of Poles
4NO

Dimensions & Physical Data

Depth
65mm
Height
85mm
Weight
0.405kg
Width
54mm

Environmental

Ambient Temperature
-25°C to 55°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 61095 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L

Other

Rated Operational Power AC-1/AC7a 230V 1 Phase (Pe)
NO 9.2kW
Rated Operational Power AC-1/AC7a 400V 3 Phase (Pe)
NO 27.7kW
Rated Operational Power AC-3/AC7b 230V 1 Phase (Pe)
NO 3.7kW
Rated Operational Power AC-3/AC7b 400V 3 Phase (Pe)
NO 11kW
