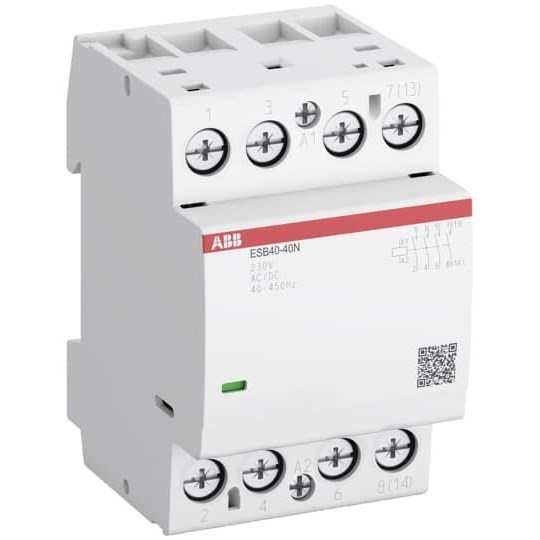

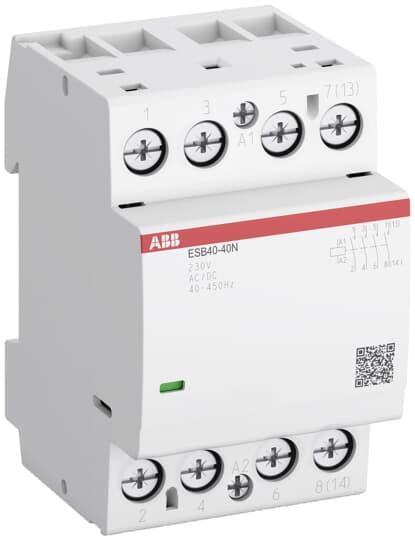

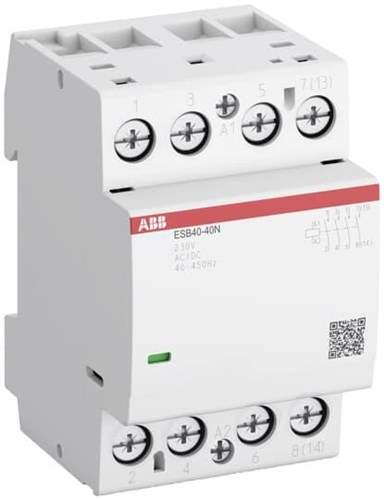

ABB ESB4040N01 Installation Contactor 4P 40A 3.7kW 400VAC Screw DIN Rail Mount

Product Code: ESB4040N01

  • 400 VAC, 40 A rated for robust performance
  • Compatible with both AC/DC voltage types
  • 4NO contact configuration for versatile use
  • Compact size: 54x85x65 mm (WxHxD)
  • IP20 protection, suitable for indoor use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Installation Contactors
Brand
ABB

Electrical

No. of N/O Contacts
4
No. of Poles (Total)
4
Rated Control Supply Voltage (Us)
220 V DC400 V AC
Rated Operational Current AC-1/AC7a (Ie)
40
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
65 mm
Height
85 mm
Weight
0.405 kg
Width
54 mm

Environmental

Ambient Temperature
-25 ... +55 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 61095

Other

Rated Operational Power AC-1/AC7a 230V 1 Phase (Pe)
9.2 kW
Rated Operational Power AC-1/AC7a 400V 3 Phase (Pe)
27.7 kW
Rated Operational Power AC-3/AC7b 230V 1 Phase (Pe)
3.7 kW
Rated Operational Power AC-3/AC7b 400V 3 Phase (Pe)
11 kW
Rated Operational Current AC-3/AC7b (le) 230 V1 phase
22 A
