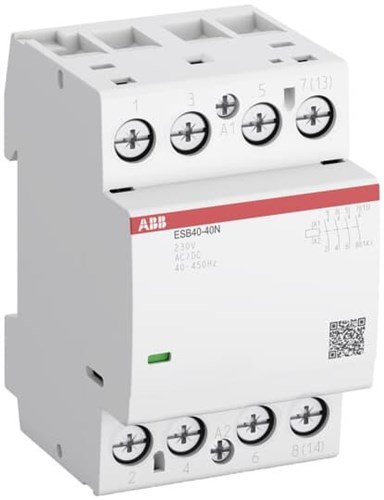

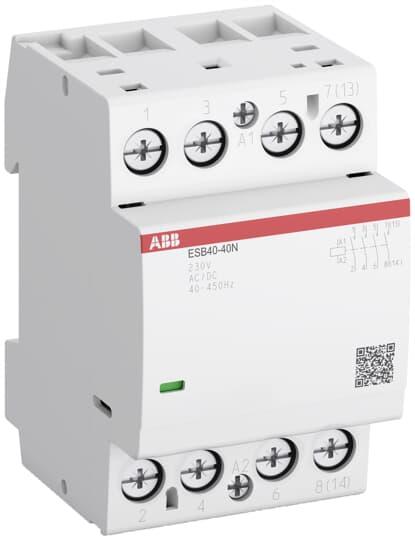

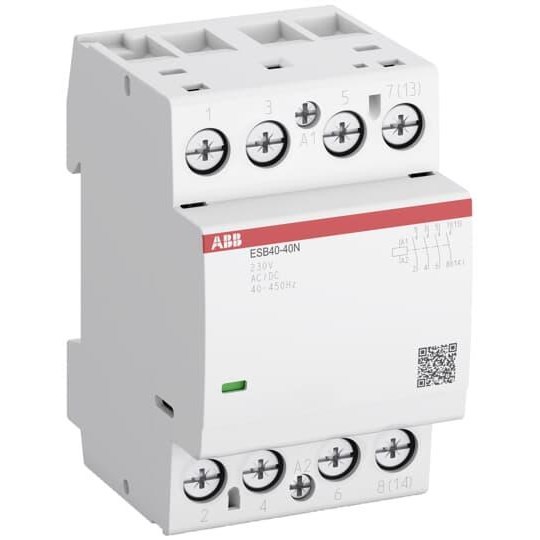

ABB ESB4022N01 Installation Contactor 4P 40A 3.7kW 400VAC Screw DIN Rail Mount

Product Code: ESB4022N01

  • Suitable for 400 VAC systems
  • Handles up to 40 A current
  • Operates on AC/DC voltage types
  • Compact size: 54x85x65 mm
  • Mounts easily on DIN rail
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Installation Contactors
Brand
ABB

Electrical

No. of N/C Contacts
2
No. of N/O Contacts
2
No. of Poles (Total)
4
Rated Control Supply Voltage (Us)
220V DC400V AC
Rated Operational Current AC-1/AC7a (Ie)
40
Rated Frequency
50/60Hz

Dimensions & Physical Data

Depth
65mm
Height
85mm
Weight
0.405kg
Width
54mm

Environmental

Ambient Temperature
-25°C to 55°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 61095

Other

Rated Operational Power AC-1/AC7a 230V 1 Phase (Pe)
9.2kW
Rated Operational Power AC-1/AC7a 400V 3 Phase (Pe)
27.7kW
Rated Operational Power AC-3/AC7b 230V 1 Phase (Pe)
3.7kW
Rated Operational Power AC-3/AC7b 400V 3 Phase (Pe)
11kW
Rated Operational Current AC-3/AC7b (le) 230 V1 phase
22A

Documents

IPD Product Catalogue V17
