Products

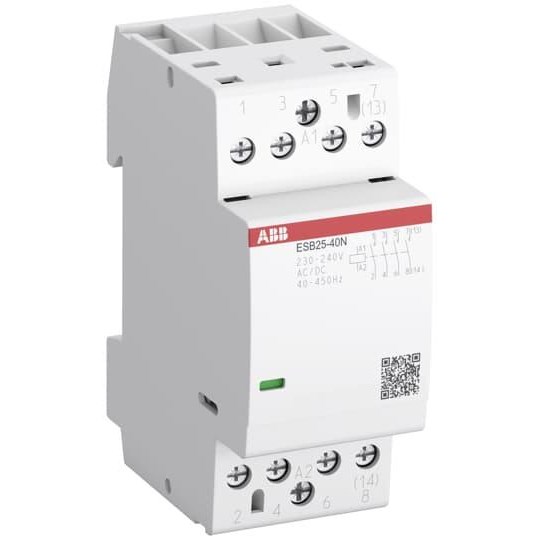

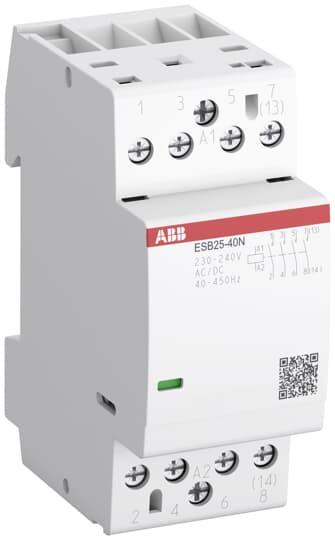

ABB ESB2540N14 Installation Contactor 4P 4NO 25A 1.3kW 400VAC DIN Rail Mount

Product Code: ESB2540N14

  • Suitable for 400 VAC, 25 A applications
  • AC/DC operating voltage compatibility
  • Compact size: 36mm width, DIN Rail mount
  • Reliable IP20 protection rating
  • Handles temperatures from -25 to 55°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Contactors
Brand
ABB

Electrical

No. of N/C Contacts
0
No. of N/O Contacts
4
Rated Control Supply Voltage (Us)
12V
Rated Operational Current AC-1/AC7a (Ie)
(NO) 25A
Rated Operational Current AC-3/AC7b (Ie)
(230V) NO 9A; (400V) NO 9A
Rated Frequency
Control Circuit 400Hz; 50Hz/60Hz
No. of Poles
4NO

Dimensions & Physical Data

Depth
65mm
Height
85mm
Weight
0.245kg
Width
36mm

Environmental

Ambient Temperature
-25°C to 55°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 61095 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L

Other

Rated Operational Power AC-1/AC7a 230V 1 Phase (Pe)
NO 5.8kW
Rated Operational Power AC-1/AC7a 400V 3 Phase (Pe)
NO 17.3kW
Rated Operational Power AC-3/AC7b 230V 1 Phase (Pe)
NO 1.3kW
Rated Operational Power AC-3/AC7b 400V 3 Phase (Pe)
NO 4kW

Documents

IPD Product Catalogue V17
