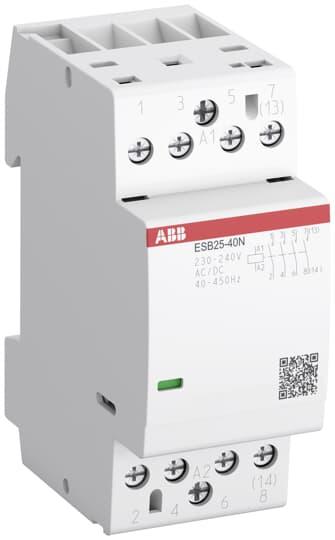

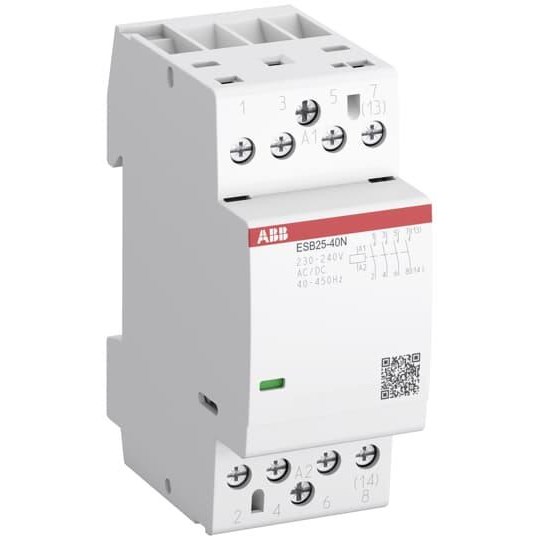

ABB ESB2540N07 Installation Contactor 4P 4NO 25A 1.3kW 400VAC DIN Rail Mount

Product Code: ESB2540N07

  • 25 A rated current for reliable performance
  • Compatible with 400 VAC systems
  • Operates on both AC and DC voltage
  • Compact design with 36 mm width
  • Easy DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Contactors
Brand
ABB

Electrical

No. of N/C Contacts
0
No. of N/O Contacts
4
No. of Poles (NO/NC)
4NO
Rated Control Supply Voltage (Us)
400 ... 415 V
Rated Operational Current AC-1/AC7a (Ie)
(NO) 25 A
Rated Operational Current AC-3/AC7b (Ie)
(230 V) NO 9 A; (400 V) NO 9 A
Rated Frequency
Control Circuit 400 Hz; 50 Hz/60 Hz

Dimensions & Physical Data

Depth
65 mm
Height
85 mm
Weight
0.235 kg
Width
36 mm

Environmental

Ambient Temperature
-25 ... +55 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 61095 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L

Other

Rated Operational Power AC-1/AC7a 230V 1 Phase (Pe)
NO 5.8 kW
Rated Operational Power AC-1/AC7a 400V 3 Phase (Pe)
NO 17.3 kW
Rated Operational Power AC-3/AC7b 230V 1 Phase (Pe)
NO 1.3 kW
Rated Operational Power AC-3/AC7b 400V 3 Phase (Pe)
NO 4 kW
