Specifications

Product Type

DIN Contactors

Brand

ABB

No. of N/C Contacts 1	No. of N/O Contacts 3	Rated Control Supply Voltage (Us) 230V to 240V
Rated Operational Current AC-1/AC7a (Ie) (NC) 25A; (NO) 25A	Rated Operational Current AC-3/AC7b (Ie) (230V) NC 6A; (230V) NO 9A	Rated Frequency Control Circuit 400Hz; 50Hz/60Hz
No. of Poles 3NO/1NC

Depth 65mm	Height 85mm	Weight 0.235kg
Width 36mm

Ambient Temperature

-25°C to 55°C

Standards and Approvals

IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 61095 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L

Rated Operational Power AC-1/AC7a 230V 1 Phase (Pe)

NC 5.8kW; NO 5.8kW

Rated Operational Power AC-3/AC7b 230V 1 Phase (Pe)

NC 0.9kW; NO 1.3kW

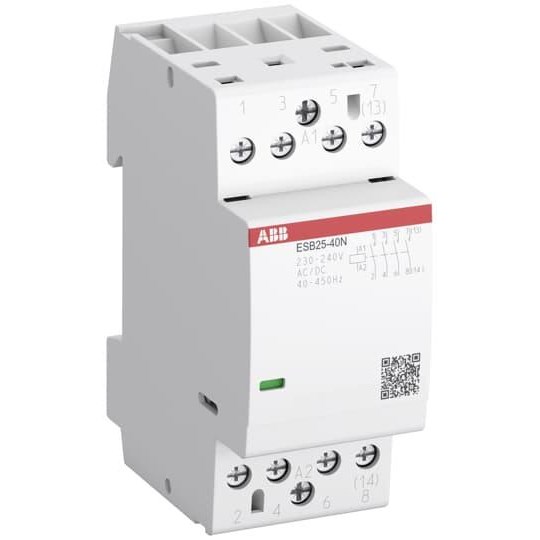

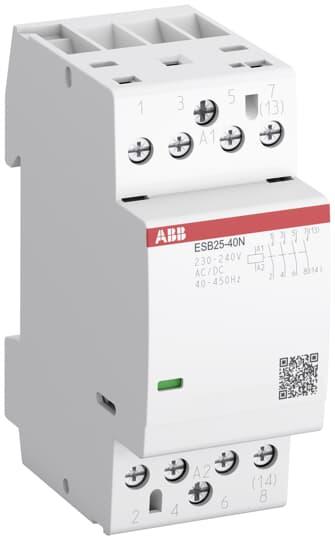

ABB ESB2531N06 Installation Contactor 4P 25A 1.3kW 400VAC Screw DIN Rail Mount
