Specifications

Product Type

DIN Contactors

Brand

ABB

No. of N/C Contacts 2	No. of N/O Contacts 2	No. of Poles (NO/NC) 2NO/2NC
Rated Control Supply Voltage (Us) 230 ... 240 V	Rated Operational Current AC-1/AC7a (Ie) (NC) 25 A; (NO) 25 A	Rated Operational Current AC-3/AC7b (Ie) (230 V) NC 6 A; (230 V) NO 9 A
Rated Frequency Control Circuit 400 Hz; 50 Hz/60 Hz

Depth 65 mm	Height 85 mm	Weight 0.235 kg
Width 36 mm

Ambient Temperature

-25 ... +55 °C

Standards and Approvals

IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 61095 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L

Rated Operational Power AC-1/AC7a 230V 1 Phase (Pe)

NC 5.8 kW; NO 5.8 kW

Rated Operational Power AC-3/AC7b 230V 1 Phase (Pe)

NC 1.3 kW; NO 1.3 kW

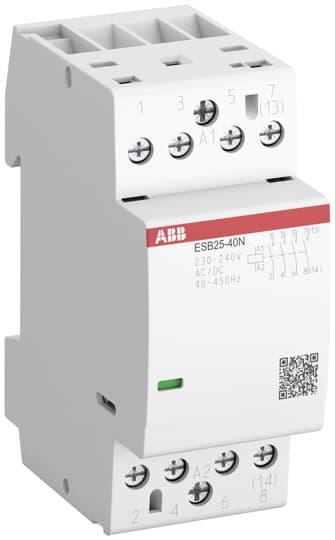

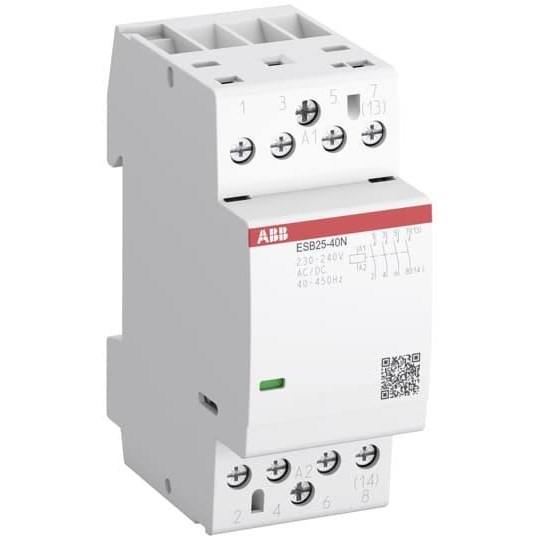

ABB ESB2522N06 Installation Contactor 4P 25A 1.3kW 400VAC Screw DIN Rail Mount
