Specifications

Product Type

DIN Contactors

Brand

ABB

No. of N/C Contacts 4	No. of N/O Contacts 0	Rated Control Supply Voltage (Us) 400V to 415V
Rated Operational Current AC-1/AC7a (Ie) (NC) 25A	Rated Operational Current AC-3/AC7b (Ie) (230V) NC 6A; (400V) NC 6A	Rated Frequency Control Circuit 400Hz; 50Hz/60Hz
No. of Poles 4NC

Depth 65mm	Height 85mm	Weight 0.235kg
Width 36mm

Ambient Temperature

-25°C to 55°C

Standards and Approvals

IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 61095 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L

Rated Operational Power AC-1/AC7a 230V 1 Phase (Pe) NC 5.8kW	Rated Operational Power AC-1/AC7a 400V 3 Phase (Pe) NC 17.3kW	Rated Operational Power AC-3/AC7b 230V 1 Phase (Pe) NC 0.9kW
Rated Operational Power AC-3/AC7b 400V 3 Phase (Pe) NC 2.7kW

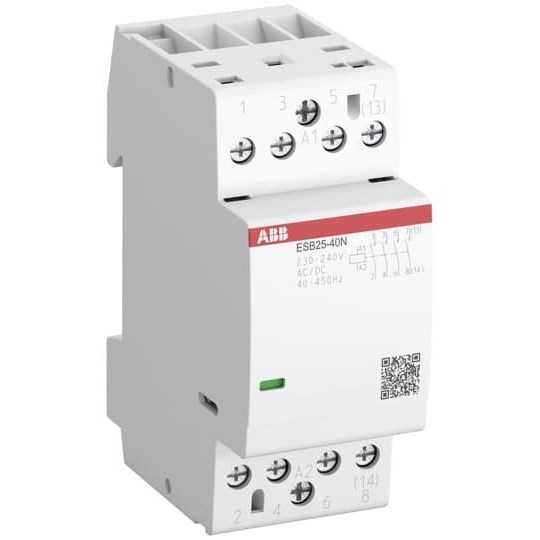

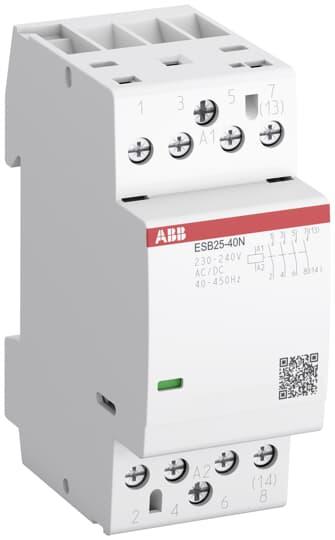

ABB ESB2504N07 Installation Contactor 25A 2.7kW 400VAC Screw DIN Rail Mount
