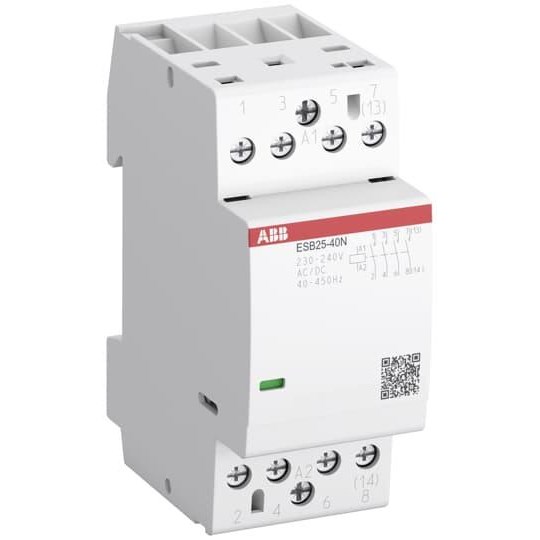

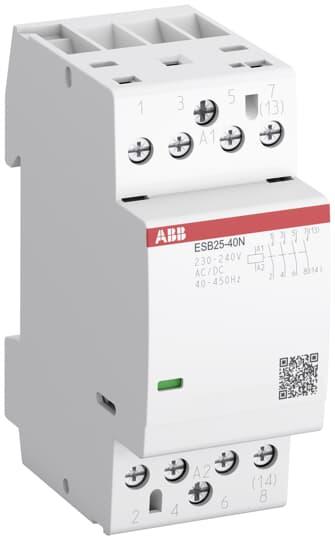

ABB ESB2504N01 Installation Contactor 4P 25A 0.9kW 400VAC Screw DIN Rail Mount

Product Code: ESB2504N01

  • Suitable for 400 VAC systems
  • Handles current up to 25 A
  • Operates at both AC/DC voltage
  • Compact size: 36mm width
  • Easy DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Installation Contactors
Brand
ABB

Electrical

No. of N/C Contacts
4
No. of Poles (Total)
4
Rated Control Supply Voltage (Us)
220 V DC400 V AC
Rated Operational Current AC-1/AC7a (Ie)
25
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
65 mm
Height
85 mm
Weight
0.245 kg
Width
36 mm

Environmental

Ambient Temperature
-25 ... +55 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 61095

Other

Rated Operational Power AC-1/AC7a 230V 1 Phase (Pe)
5.8 kW
Rated Operational Power AC-1/AC7a 400V 3 Phase (Pe)
17.3 kW
Rated Operational Power AC-3/AC7b 230V 1 Phase (Pe)
1.3 kW
Rated Operational Power AC-3/AC7b 400V 3 Phase (Pe)
4 kW
Rated Operational Current AC-3/AC7b (le) 230 V1 phase
9A

Documents
