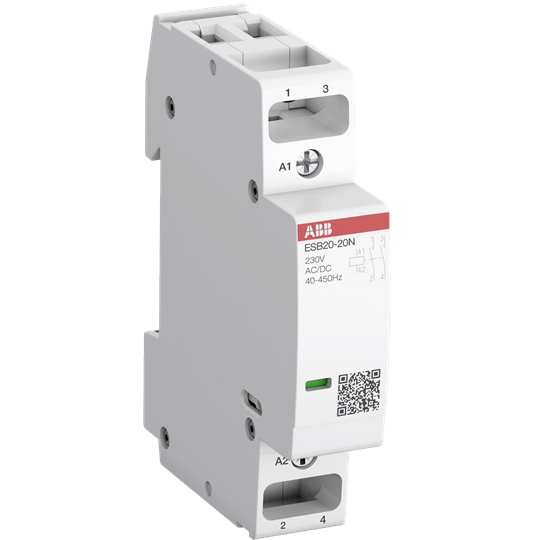

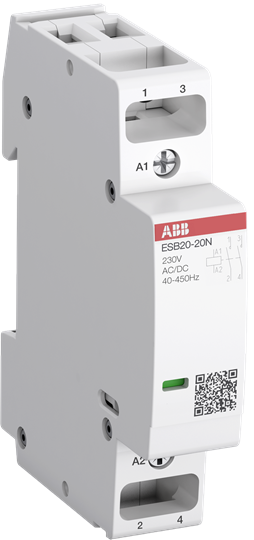

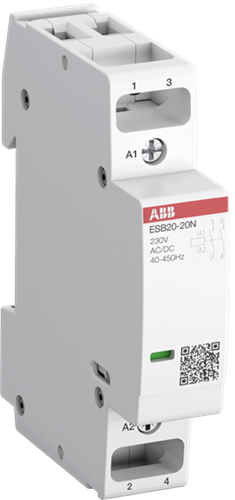

ABB ESB2011N06 Installation Contactor 2P 20A 1.3kW 250VAC Screw DIN Rail Mount

Product Code: ESB2011N06

  • Suitable for 250 VAC, 20 A applications
  • Operates on both AC/DC voltage
  • Compact design: 18mm width
  • Easy DIN rail mounting system
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Contactors
Brand
ABB

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
No. of Poles (NO/NC)
1NO/1NC
Rated Control Supply Voltage (Us)
230 V
Rated Operational Current AC-1/AC7a (Ie)
(NO/NC) 20 A
Rated Operational Current AC-3/AC7b (Ie)
(230 V) NO/NC 9 A
Rated Frequency
Control Circuit 400 Hz; 50 Hz/60 Hz

Dimensions & Physical Data

Depth
65 mm
Height
85 mm
Weight
0.14 kg
Width
18 mm

Environmental

Ambient Temperature
-25 ... +55 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 61095 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L

Other

Rated Operational Power AC-1/AC7a 230V 1 Phase (Pe)
NO/NC 4.6 kW
Rated Operational Power AC-3/AC7b 230V 1 Phase (Pe)
NO/NC 1.3 kW
