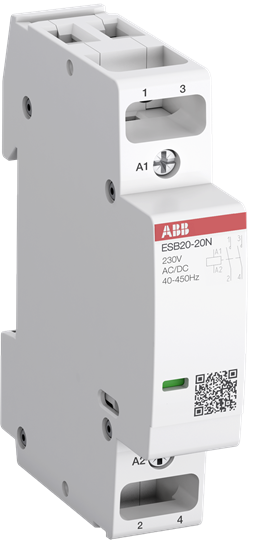

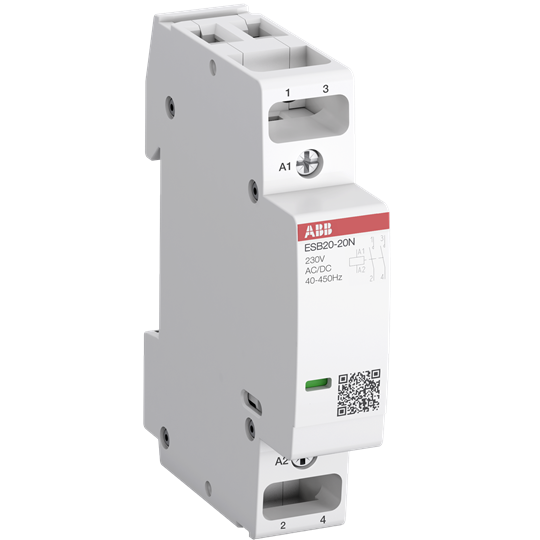

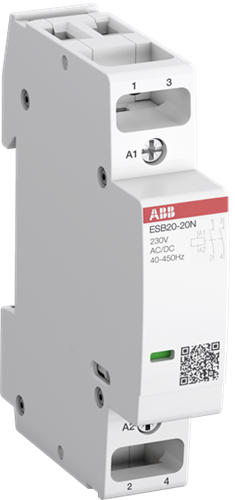

ABB ESB2002N01 Installation Contactor 2P 20A 1.3kW 250VAC Screw DIN Rail Mount

Product Code: ESB2002N01

  • DIN rail mount for easy installation
  • Handles 250 VAC, 20 A current
  • Operates on AC/DC voltage
  • Compact size: 18mm width
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Installation Contactors
Brand
ABB

Electrical

No. of N/C Contacts
2
No. of Poles (Total)
2
Rated Control Supply Voltage (Us)
220V DC240V AC
Rated Operational Current AC-1/AC7a (Ie)
20
Rated Frequency
50/60Hz

Dimensions & Physical Data

Depth
65mm
Height
85mm
Weight
0.14kg
Width
18mm

Environmental

Ambient Temperature
-25°C to 55°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 61095

Other

Rated Operational Current AC-3/AC7b (le) 230 V1 phase
9A
Rated Operational Power AC-1/AC7a 230V 1 Phase (Pe)
4.6kW
Rated Operational Power AC-3/AC7b 230V 1 Phase (Pe)
1.3kW
