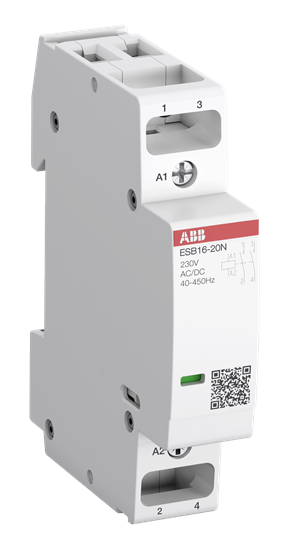

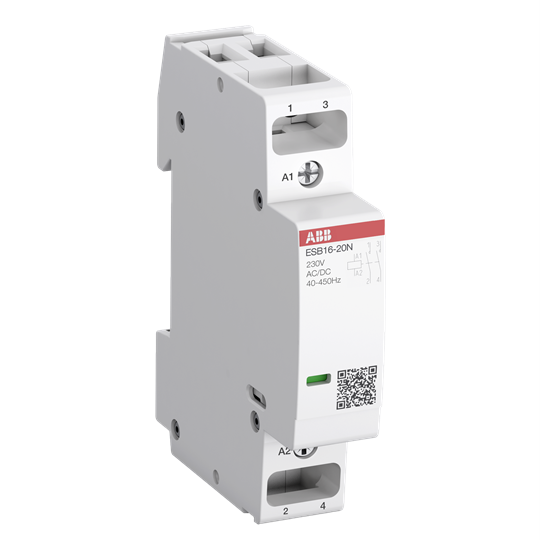

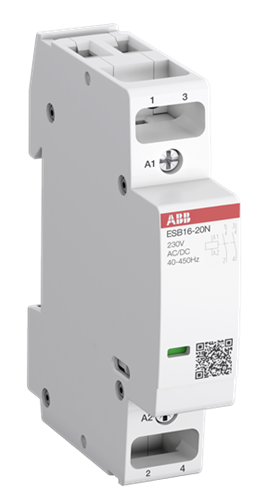

ABB ESB1620N06 Installation Contactor 2P 16A 0.9kW 250VAC Screw DIN Rail Mount

Product Code: ESB1620N06

  • Suitable for 250 VAC, 16 A applications
  • Dual operation with AC/DC voltage
  • Compact size: 18mm width, 85mm height
  • Secure screw terminal connections
  • IP20 protection for indoor use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Contactors
Brand
ABB

Electrical

No. of N/C Contacts
0
No. of N/O Contacts
2
Rated Control Supply Voltage (Us)
230V
Rated Operational Current AC-1/AC7a (Ie)
(NO) 16A
Rated Operational Current AC-3/AC7b (Ie)
(230V) NO 6A
Rated Frequency
Control Circuit 400Hz; 50Hz/60Hz
No. of Poles
2NO

Dimensions & Physical Data

Depth
65mm
Height
85mm
Weight
0.14kg
Width
18mm

Environmental

Ambient Temperature
-25°C to 55°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 61095 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L

Other

Rated Operational Power AC-1/AC7a 230V 1 Phase (Pe)
NO 3.7kW
Rated Operational Power AC-3/AC7b 230V 1 Phase (Pe)
NO 0.9kW
