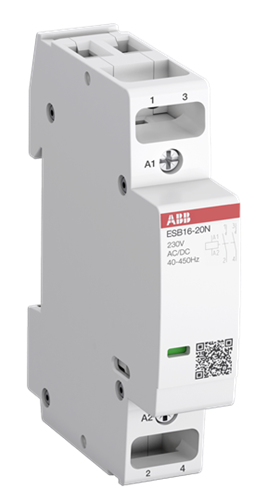

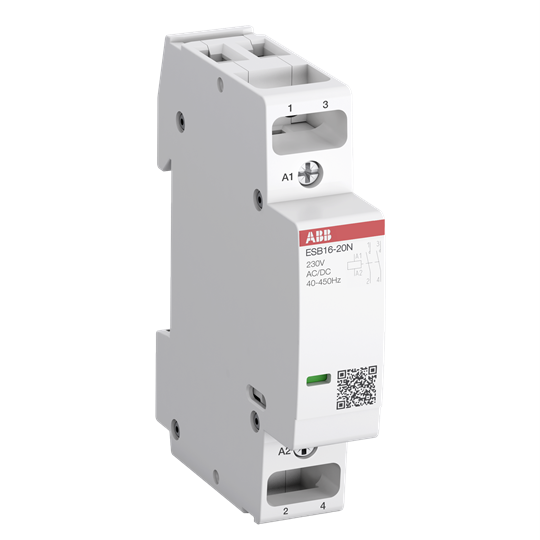

ABB ESB1611N01 Installation Contactor 2P 16A 0.9kW 250VAC Screw DIN Rail Mount

Product Code: ESB1611N01

  • Suitable for 250 VAC, 16 A applications
  • Operates on both AC/DC voltage types
  • Compact design: 18mm width, DIN rail mount
  • Dual contacts: 1NC + 1NO configuration
  • IP20 protection with screw terminals
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Contactors
Brand
ABB

Electrical

No. of N/C Contacts
1
No. of N/O Contacts
1
Rated Control Supply Voltage (Us)
24V
Rated Operational Current AC-1/AC7a (Ie)
(NO/NC) 16A
Rated Operational Current AC-3/AC7b (Ie)
(230V) NO/NC 6A
Rated Frequency
Control Circuit 400Hz; 50Hz/60Hz
No. of Poles
1NO/1NC

Dimensions & Physical Data

Depth
65mm
Height
85mm
Weight
0.14kg
Width
18mm

Environmental

Ambient Temperature
-25°C to 55°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 61095 UL 60947-1 UL 60947-4-1 IEC 60335-2-40 A2L

Other

Rated Operational Power AC-1/AC7a 230V 1 Phase (Pe)
NO/NC 3.7kW
Rated Operational Power AC-3/AC7b 230V 1 Phase (Pe)
NO/NC 0.9kW
