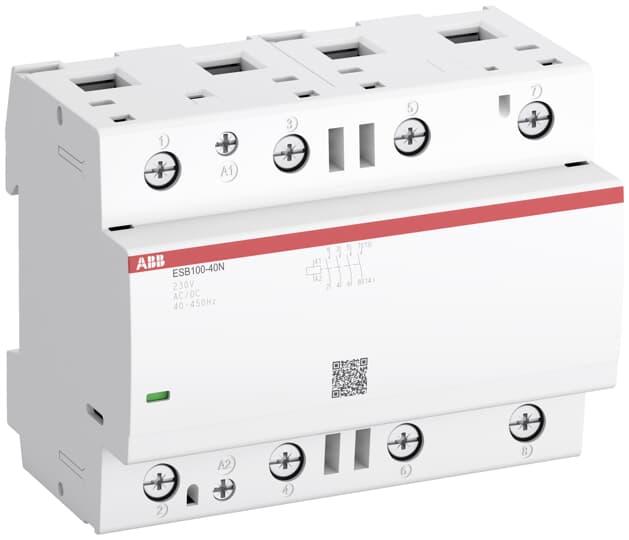

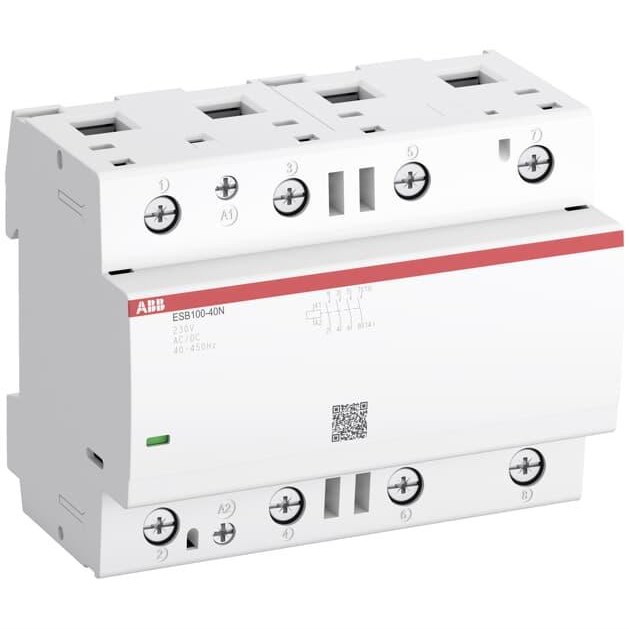

ABB ESB10040N06 Installation Contactor 100A 400VAC Screw DIN Rail Mount

Product Code: ESB10040N06

  • Suitable for 400 VAC, 100 A applications
  • Operates on AC/DC voltage types
  • 4 normally open contacts (4NO)
  • Secure screw terminal connections
  • Compact DIN rail mounting design
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Installation Contactors
Brand
ABB

Electrical

No. of N/O Contacts
4
No. of Poles (Total)
4
Rated Control Supply Voltage (Us)
220 V DC400 V AC
Rated Operational Current AC-1/AC7a (Ie)
100
Rated Frequency
50/60 Hz

Dimensions & Physical Data

Depth
65 mm
Height
85 mm
Weight
0.81 kg
Width
108 mm

Environmental

Ambient Temperature
-25 ... +55 °C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1, IEC/EN 60947-4-1, IEC/EN 61095

Other

Rated Operational Power AC-1/AC7a 230V 1 Phase (Pe)
23 kW
Rated Operational Power AC-1/AC7a 400V 3 Phase (Pe)
69.3 kW
