Products

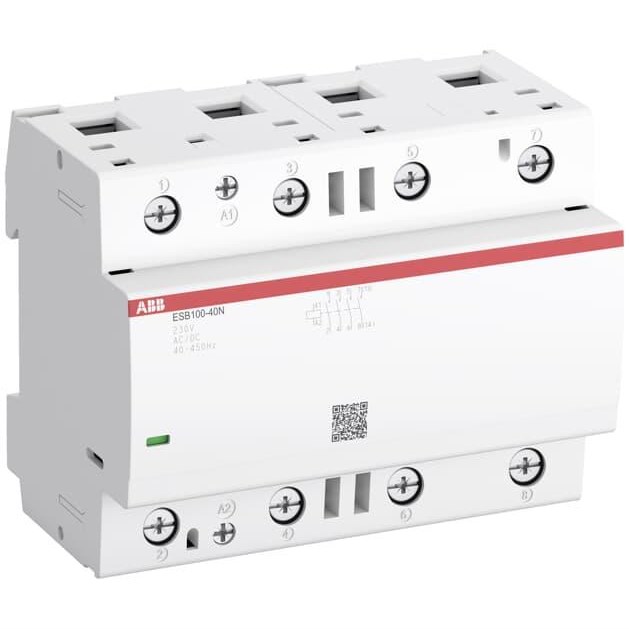

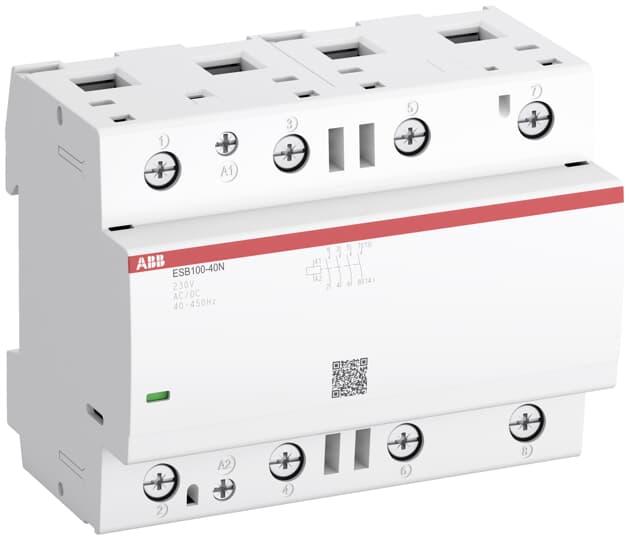

ABB ESB10040N01 Installation Contactor 100A 400VAC Screw DIN Rail Mount

Product Code: ESB10040N01

  • Suitable for 400 VAC, 100 A applications
  • Operates on both AC and DC voltage
  • Compact DIN rail mounting design
  • 4NO contact configuration with screw terminals
  • IP20 protection rating
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Contactors
Brand
ABB

Electrical

No. of N/C Contacts
0
No. of N/O Contacts
4
Rated Control Supply Voltage (Us)
24V
Rated Operational Current AC-1/AC7a (Ie)
(NO) 100A
Rated Frequency
Control Circuit 400Hz; 50Hz/60Hz
No. of Poles
4NO

Dimensions & Physical Data

Depth
65mm
Height
85mm
Weight
0.81kg
Width
108mm

Environmental

Ambient Temperature
-25°C to 55°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 61095 UL 60947-1 UL 60947-4-1

Other

Rated Operational Power AC-1/AC7a 230V 1 Phase (Pe)
NO 23kW
Rated Operational Power AC-1/AC7a 400V 3 Phase (Pe)
NO 69.3kW
