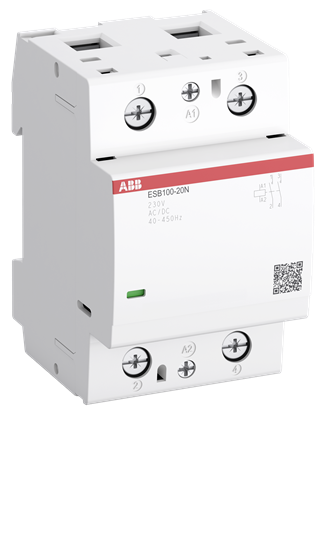

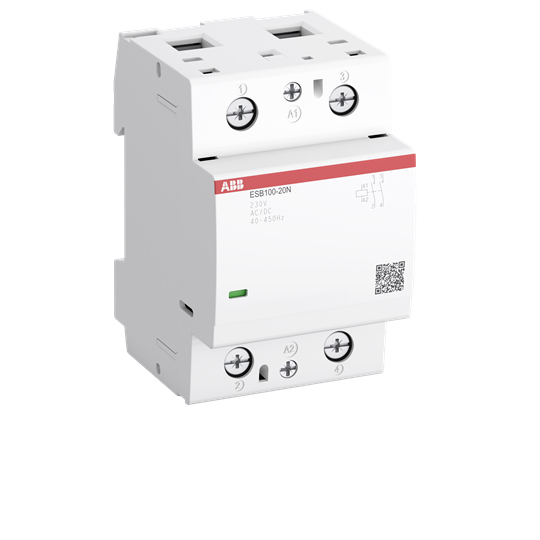

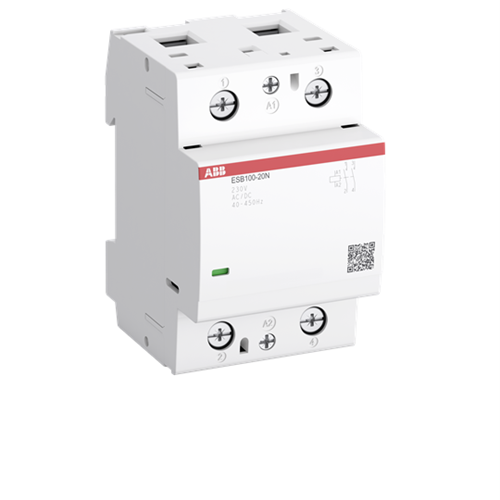

ABB ESB10020N01 Installation Contactor 100A 400VAC Screw DIN Rail Mount

Product Code: ESB10020N01

  • 100 A rated current for robust performance
  • Compatible with both AC/DC voltage
  • Compact size: 54mm wide, 85mm high, 65mm deep
  • Easy DIN rail mounting system
  • IP20 protection for safe indoor use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Contactors
Brand
ABB

Electrical

No. of N/O Contacts
2
Rated Control Supply Voltage (Us)
24V
Rated Operational Current AC-1/AC7a (Ie)
(NO) 100A
Rated Frequency
Control Circuit 400Hz; 50Hz/60Hz
No. of Poles
2NO

Dimensions & Physical Data

Depth
65mm
Height
85mm
Weight
0.405kg
Width
54mm

Environmental

Ambient Temperature
-25°C to 55°C

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 61095 UL 60947-1 UL 60947-4-1

Other

Rated Operational Power AC-1/AC7a 230V 1 Phase (Pe)
NO 23kW
