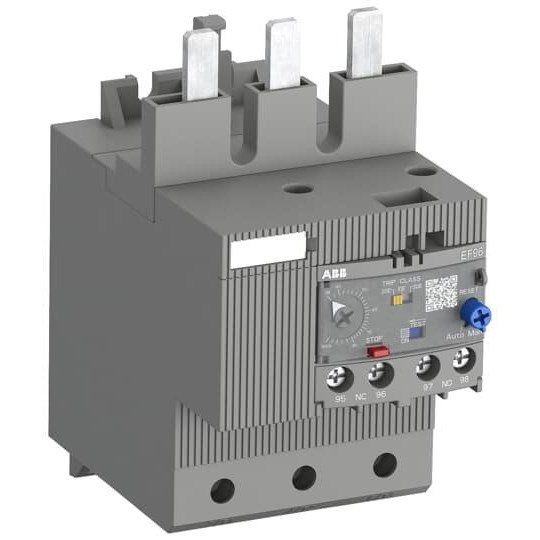

ABB EF96-100 Electronic Overload Relay 36-100A 1000VAC 200A Fuse Type gG

Product Code: EF96-100

  • Suitable for AF80-AF96 contactors
  • Operates at 1000 VAC, 50/60 Hz
  • Trip class options: 10E, 20E, 30E
  • Compact size: W70 x H131.7 x D105.2 mm
  • Automatic reset function
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Overload Relay
Brand
ABB

Electrical

Max. Operational Voltage
1000 VAC
Suitable for Single Phase / Three Phase
Three Phase
Thermal Current Setting Range
36 ... 100 A
Trip Class
10E; 20E; 30E

Dimensions & Physical Data

Depth
105.2 mm
Height
132.7 mm
Weight
0.802 kg
Width
70 mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1

Accessories & Additional Information

Suitable Product Range
AF80; AF96
