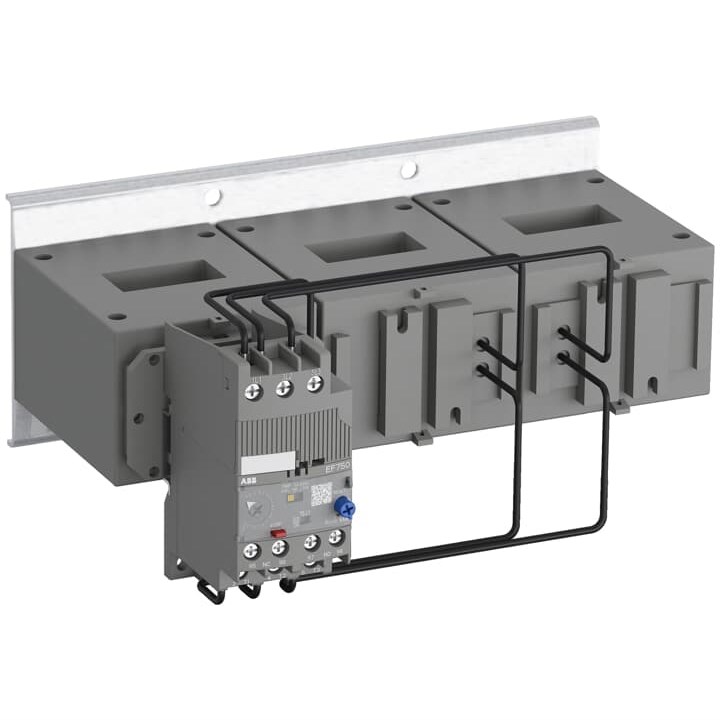

ABB EF750-800 Electronic Overload Relay 250-800A 600VAC/DC 1000VAC

Product Code: EF750-800

  • Rated for 600 VAC/VDC, 1000 VAC
  • Current setting range: 250-800 A
  • Compact size: 244 mm width
  • IP20 protection rating
  • Compatible with AF580-AF750 Contactors
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Overload Relay
Brand
ABB

Electrical

Max. Operational Voltage
1000 VAC
Suitable for Single Phase / Three Phase
Three Phase
Thermal Current Setting Range
250 ... 800 A
Trip Class
10E; 20E; 30E

Dimensions & Physical Data

Depth
187.73 mm
Height
111.6 mm
Weight
2.765 kg
Width
244 mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1

Accessories & Additional Information

Suitable Product Range
AF580; AF750

Documents

IPD Product Catalogue V17
