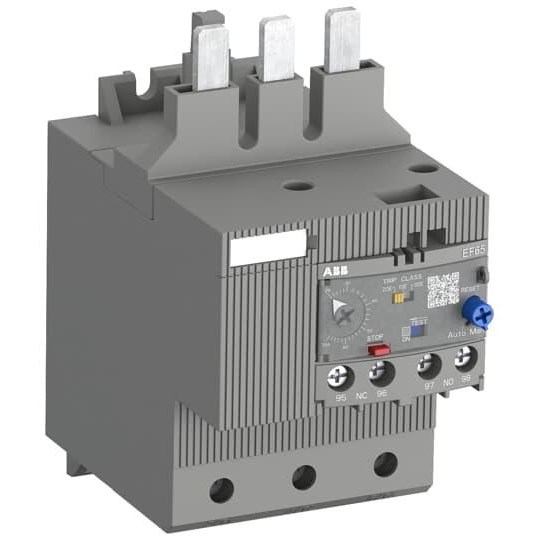

ABB EF65-70 Electronic Overload Relay 25-70A 1000VAC 160A Fuse Type gG

Product Code: EF65-70

  • Supports 1000 VAC & 0.55 A
  • Trip Classes: 10E, 20E, 30E
  • Direct mount with AF40-AF65 contactors
  • IP10/IP20 protection; -25 to 70°C operation
  • Meets IEC/EN & UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Overload Relay
Brand
ABB

Electrical

Max. Operational Voltage
1000 VAC
Suitable for Single Phase / Three Phase
Three Phase
Thermal Current Setting Range
25 ... 70 A
Trip Class
10E; 20E; 30E

Dimensions & Physical Data

Depth
105.2 mm
Height
131.2 mm
Weight
0.821 kg
Width
70 mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1

Accessories & Additional Information

Suitable Product Range
AF40; AF52; AF65

Documents

IPD Product Catalogue V17
