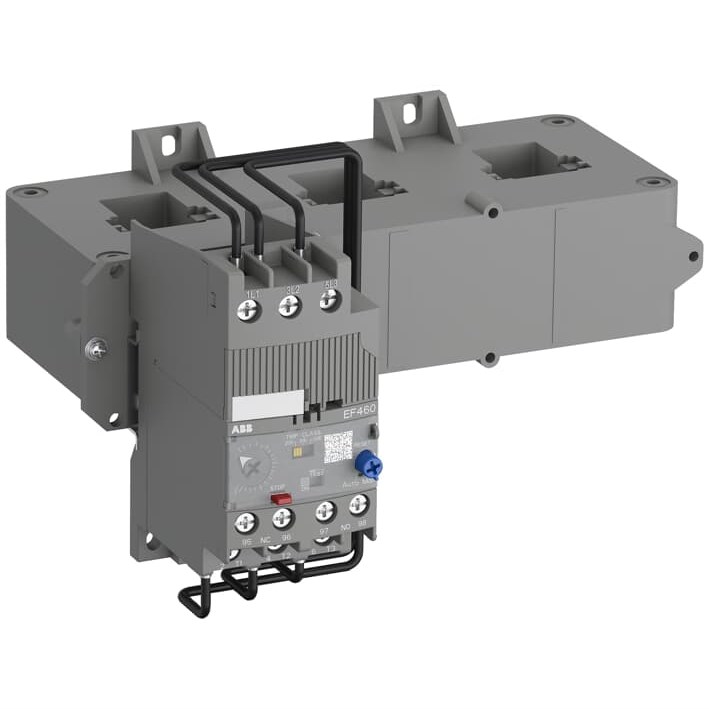

ABB EF460-500 Electronic Overload Relay 150-500A 600VAC/DC

Product Code: EF460-500

  • Handles voltages up to 600 VAC/VDC
  • Current setting range from 150 to 500 A
  • Compact size: 186mm (W) x 103.5mm (H) x 152.13mm (D)
  • IP20 protection rating for safety
  • Compatible with AF400-AF460 contactors
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Overload Relay
Brand
ABB

Electrical

Max. Operational Voltage
1000 VAC
Suitable for Single Phase / Three Phase
Three Phase
Thermal Current Setting Range
150 ... 500 A
Trip Class
10E; 20E; 30E

Dimensions & Physical Data

Depth
152.1 mm
Height
103.5 mm
Weight
1.182 kg
Width
186 mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1

Accessories & Additional Information

Suitable Product Range
AF400; AF460

Documents

IPD Product Catalogue V17
