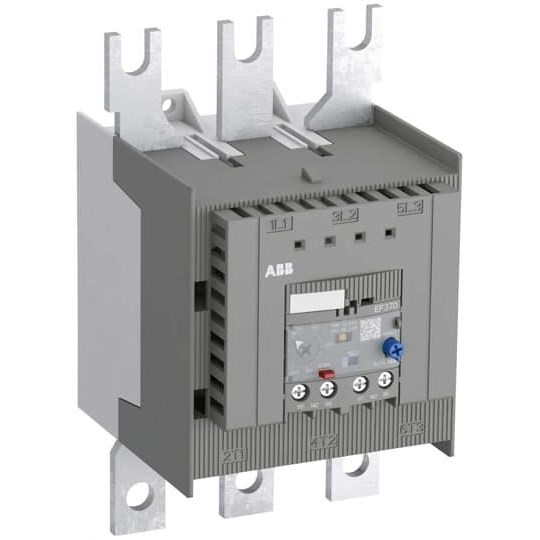

ABB EF370 Electronic Overload Relay 115-380A 1000VAC 1600A Fuse Type gG

Product Code: EF370

  • Supports 1000 VAC and 0.55 A rated current
  • Offers trip classes 10E, 20E, and 30E
  • IP20 protection for reliable use
  • Compatible with AF265-AF370 contactors
  • Automatic reset function for convenience
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Overload Relay
Brand
ABB

Electrical

Max. Operational Voltage
1000 VAC
Suitable for Single Phase / Three Phase
Three Phase
Thermal Current Setting Range
115 ... 380 A
Trip Class
10E; 20E; 30E

Dimensions & Physical Data

Depth
122.8 mm
Height
187.6 mm
Weight
1.338 kg
Width
105 mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1

Accessories & Additional Information

Suitable Product Range
A210; A260; A300; AF210; AF260; AF265; AF300; AF305; AF370

Documents

IPD Product Catalogue V17
