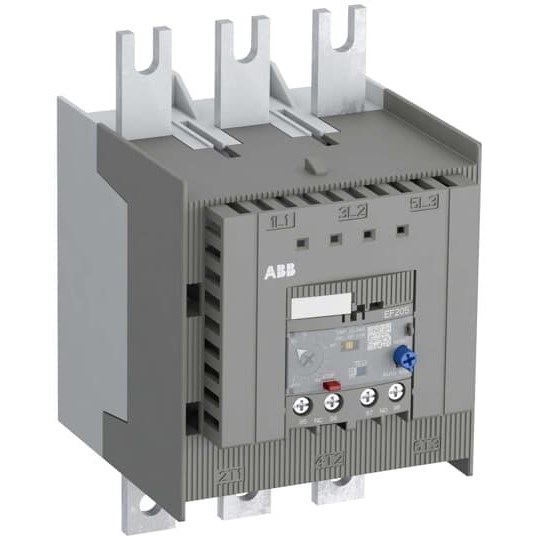

ABB EF205 Electronic Overload Relay 63-210A 1000VAC 1250A Fuse Type gG

Product Code: EF205

  • Supports 1000 VAC, 0.55 A rated voltage/current
  • Operates at 50/60 Hz frequency
  • IP20 protection with direct mounting
  • Compatible with AF190-AF205 contactors
  • Automatic reset for convenience
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Overload Relay
Brand
ABB

Electrical

Max. Operational Voltage
1000 VAC
Suitable for Single Phase / Three Phase
Three Phase
Thermal Current Setting Range
63 ... 210 A
Trip Class
10E; 20E; 30E

Dimensions & Physical Data

Depth
122.8 mm
Height
171 mm
Weight
1.256 kg
Width
105 mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1

Accessories & Additional Information

Suitable Product Range
A145; A185; AF145; AF180; AF185; AF205

Documents

IPD Product Catalogue V17
