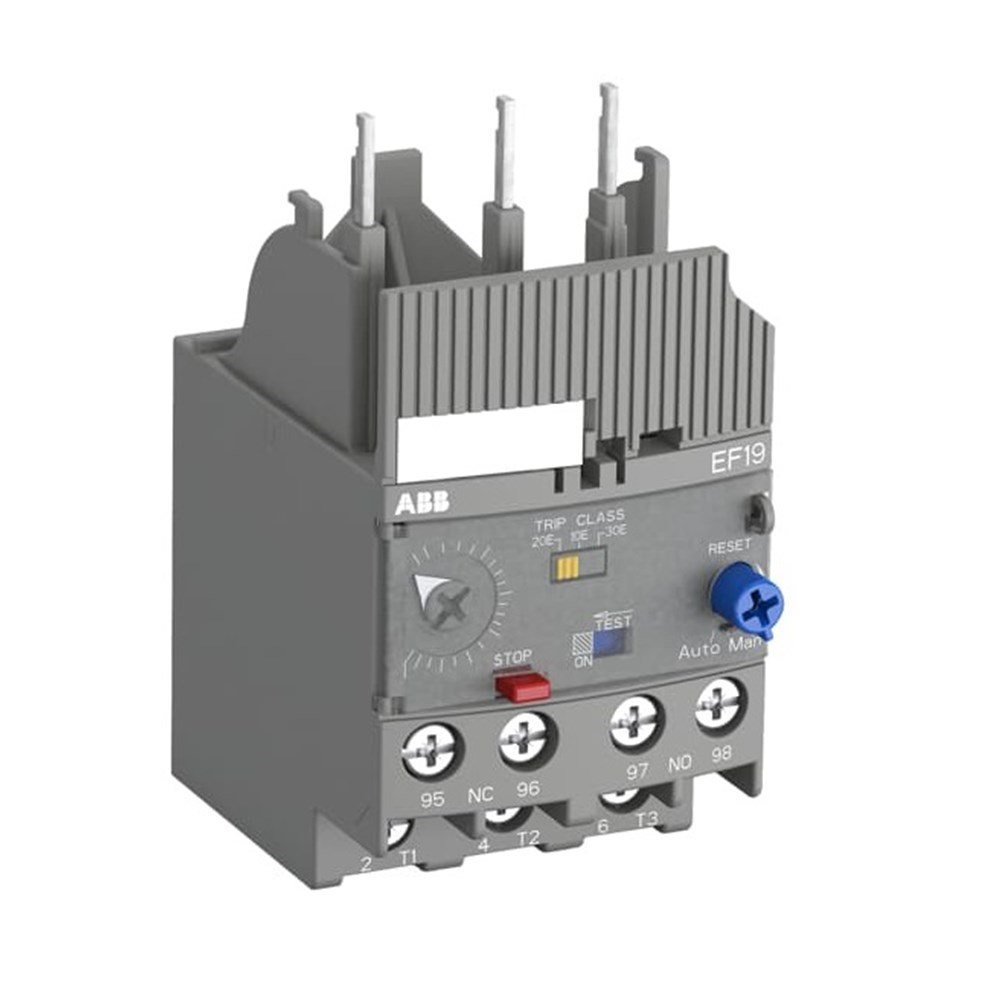

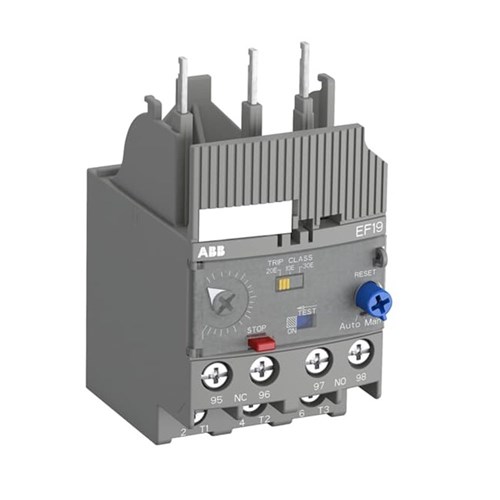

ABB EF19-6.3 Electronic Overload Relay 1.9-6.3A 690VAC 20A Fuse Type gG

Product Code: EF19-6.3

  • Rated voltage of 690 VAC
  • Trip class options: 10E, 20E, 30E
  • IP20 protection rating
  • Operational temp: -25 to 70°C
  • Compatible with AF09-AF38
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Overload Relay
Brand
ABB

Electrical

Max. Operational Voltage
690 VAC
Suitable for Single Phase / Three Phase
Three Phase
Thermal Current Setting Range
1.90 ... 6.3 A
Trip Class
10E; 20E; 30E

Dimensions & Physical Data

Depth
59.3 mm
Height
85 mm
Weight
0.158 kg
Width
44.4 mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1

Accessories & Additional Information

Suitable Product Range
AF09; AF12; AF16; AF26; AF30; AF38

Documents

IPD Product Catalogue V17
