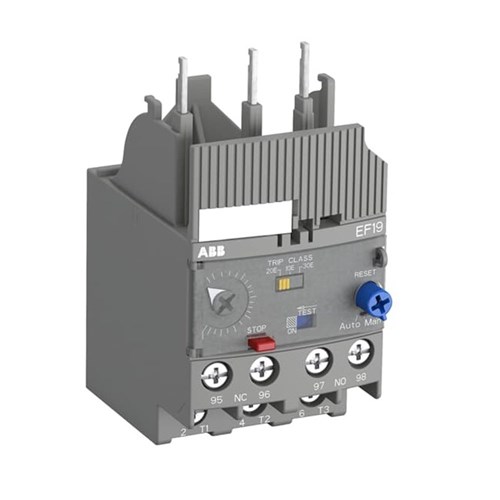

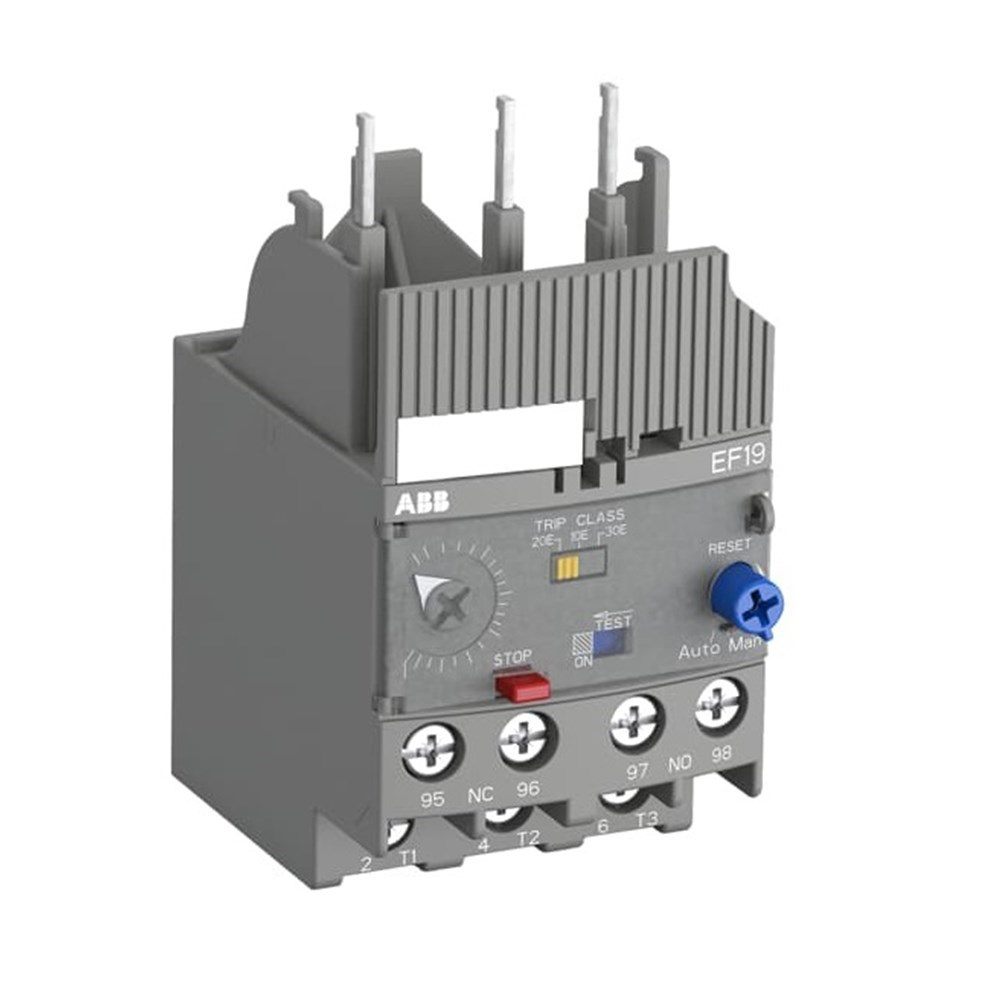

ABB EF19-18.9 Electronic Overload Relay 5.7-18.9A 690VAC 50A Fuse Type gG

Product Code: EF19-18.9

  • Handles up to 690 VAC and 0.55 A
  • Features 1NC+1NO contact configuration
  • Trip classes: 10E, 20E, 30E
  • Operates in -25 to 70°C environments
  • Complies with IEC/EN & UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Overload Relay
Brand
ABB

Electrical

Max. Operational Voltage
690 VAC
Suitable for Single Phase / Three Phase
Three Phase
Thermal Current Setting Range
5.70 ... 18.9 A
Trip Class
10E; 20E; 30E

Dimensions & Physical Data

Depth
59.3 mm
Height
85 mm
Weight
0.158 kg
Width
44.4 mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1

Accessories & Additional Information

Suitable Product Range
AF09; AF12; AF16; AF26; AF30; AF38

Documents

IPD Product Catalogue V17
