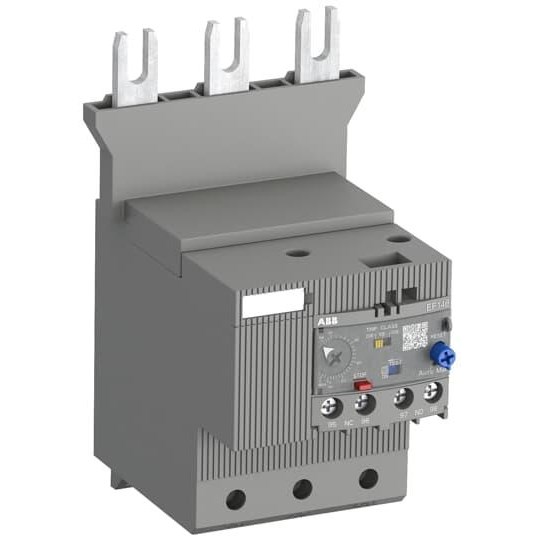

ABB EF146-150 Electronic Overload Relay 54-150A 1000VAC 315A Fuse Type gG

Product Code: EF146-150

  • Supports 1000 VAC & 0.55 A
  • Trip classes: 10E, 20E, 30E
  • Direct mounting with AF116-AF146 contactors
  • Operates in -25 to 70°C range
  • Complies with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Overload Relay
Brand
ABB

Electrical

Max. Operational Voltage
1000 VAC
Suitable for Single Phase / Three Phase
Three Phase
Thermal Current Setting Range
54 ... 150 A
Trip Class
10E; 20E; 30E

Dimensions & Physical Data

Depth
105.2 mm
Height
150.4 mm
Weight
0.879 kg
Width
89.05 mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1; IEC/EN 60947-4-1; IEC/EN 60947-5-1; UL 60947-1; UL 60947-4-1

Accessories & Additional Information

Suitable Product Range
AF116; AF140; AF146

Documents

IPD Product Catalogue V17
