Specifications

Product Type

Change - Over Switch

Brand

ABB

No. of Auxiliary Contacts CO (SPDT) 1	No. of Auxiliary Contacts NC 0	No. of Auxiliary Contacts NO 0
No. of Poles (Total) 1	Rated Operational Voltage (Ue) acc. to EN 250 V AC acc. to UL 508 240 V AC	Rated Current (In) 16A
Terminal Type Screw Terminals

Conductor Cross Section Flexible

Flexible 1x0.75…2x2.5mm²

Conductor Cross Section Solid Core

Solid 1x1…6mm² Solid 2x2.5mm²

Depth 68mm	Height 85mm	Weight 0.044kg
Width 9mm	Width in No. of Modular Spacing 0.5

Storage Temperature

-40°C to 70°C

Operating Temperature

-25°C to 55°C

IP Rating

IP20

Standards and Approvals

EN 60669-1 VDE0632-1 IEC 60068-2-2 IEC 60068-2-1 IEC 60068-2-38 UL 508 CB/CCC

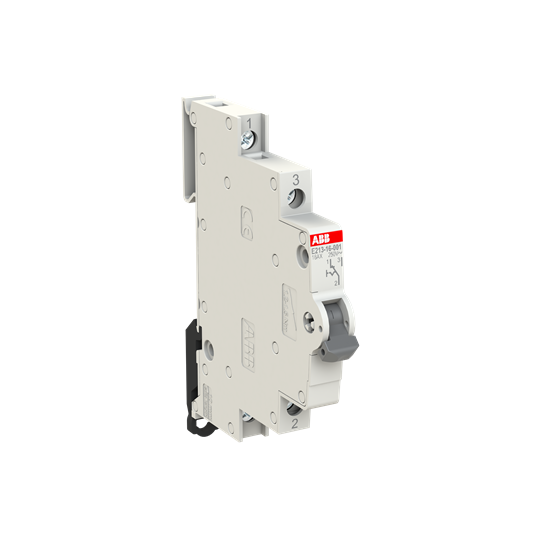

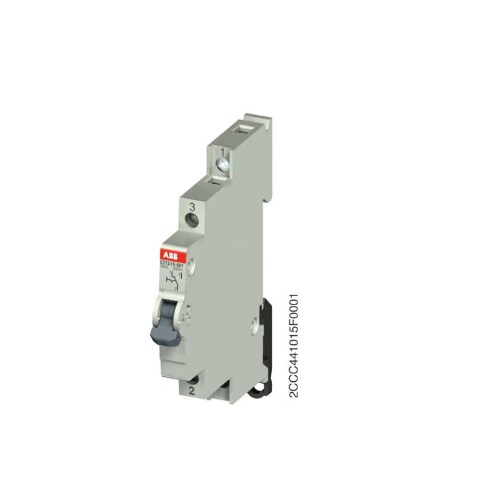

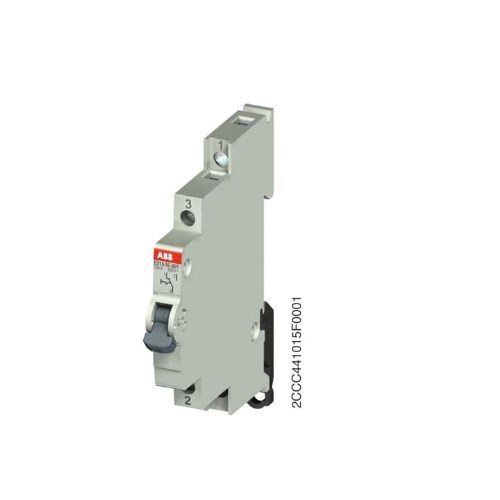

ABB E213-16-001 Changeover Switch SPDT 16A 250VAC 1NO
