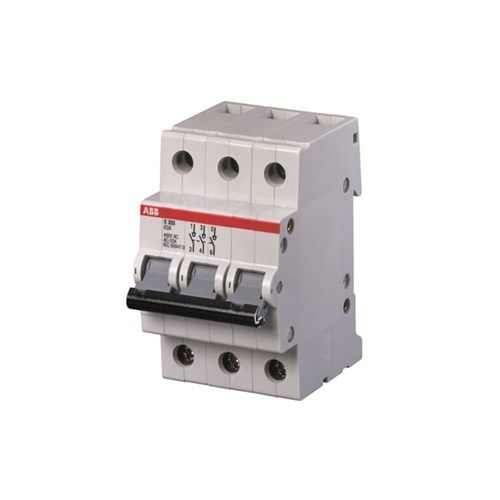

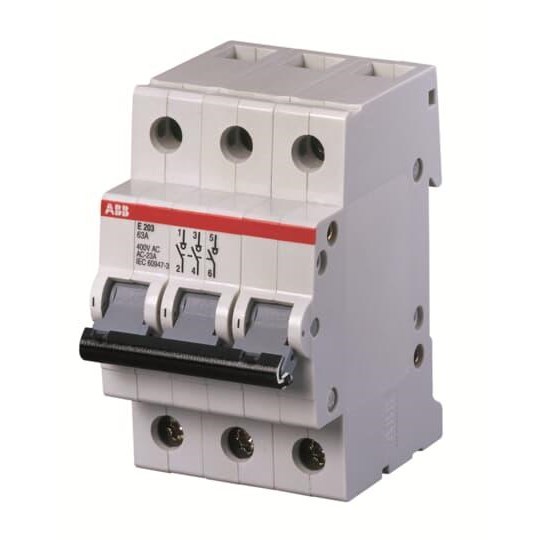

ABB E20380RD Switch Disconnector IP10 80A 3-P 230/400VAC DIN Rail Mount

Product Code: E20380RD

  • 80 A switch disconnector with 3 poles
  • Complies with AS/NZS 60947-3 standards
  • DIN rail mount for easy installation
  • Operates at 230/400 VAC and 50/60 Hz
  • Compact size: 52.5 x 85 x 69 mm
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Isolator
Brand
ABB
Series
E 200
Application
Commanding loads

Electrical

No. of Poles (Total)
3
Rated Impulse Withstand Voltage (Uimp)
4kV
Power Loss
2.6W
Rated Current (In)
80A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
400V 12V Minimum 60V DC
Terminal Type
screw terminal
Electrical Life
1500 cycles
Mechanical Life
20000 cycles

Mechanical

Housing Material
Grey, RAL 7035

Dimensions & Physical Data

Depth
69mm
Height
85mm
Weight
0.29kg
Width
52.5mm
Width in No. of Modular Spacing
3
Pole Width
17.5mm

Environmental

Pollution Degree
3
Storage Temperature
-40°C to 70°C
Operating Temperature
-25°C to 55°C
IP Rating
IP10, IP40 in enclosure with cover

Safety, Standards & Compliance

Standards and Approvals
DIN EN 60947-3 (VDE0660-107), IEC/EN 60947-3, CE, RoHS, VDE, CCC, KEMA, EAC

Other

Rated Short Circuit Breaking Capacity (Icn) acc. to AS/NZS 60898 at 400 VAC
25kA
Rated Short Circuit Breaking Capacity (Icn) acc. to AS/NZS 60898 at 230 VAC
25kA
