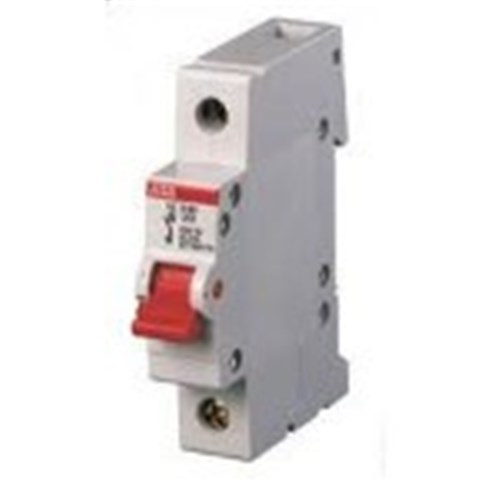

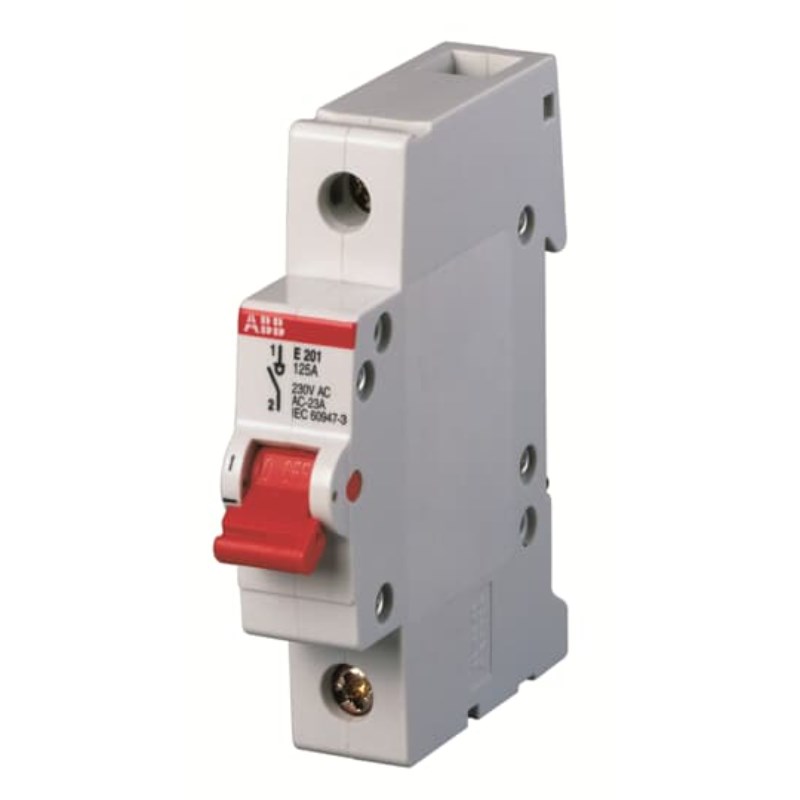

ABB E201100RD SWITCH DISCONNECTOR IP10 100A 1-P 230/400VAC DIN RAIL MOUNT

Product Code: E201100RD

  • 100 A switch disconnector, DIN rail mount
  • Compact size: 17.5 mm width
  • Meets AS/NZS 60947-3 standards
  • Rated voltage: 230/400 VAC
  • Short circuit capacity: 25 kA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Isolator
Brand
ABB
Series
E 200
Application
Commanding loads

Electrical

No. of Poles (Total)
1
Rated Impulse Withstand Voltage (Uimp)
4kV
Power Loss
3.95W
Rated Current (In)
100A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
230V 12V Minimum 60V DC
Terminal Type
Screw Terminals
Electrical Life
1500 cycles
Mechanical Life
20000 cycles

Mechanical

Housing Material
Grey, RAL 7035

Dimensions & Physical Data

Depth
69mm
Height
85mm
Weight
0.095kg
Width
17.5mm
Width in No. of Modular Spacing
1
Pole Width
17.5mm

Environmental

Pollution Degree
3
Storage Temperature
-40°C to 70°C
Operating Temperature
-25°C to 55°C
IP Rating
IP10, IP40 in enclosure with cover

Safety, Standards & Compliance

Standards and Approvals
DIN EN 60947-3 (VDE0660-107), IEC/EN 60947-3, CE, RoHS, VDE, CCC, KEMA, EAC

Other

Rated Short Circuit Breaking Capacity (Icn) acc. to AS/NZS 60898 at 400 VAC
25kA
Rated Short Circuit Breaking Capacity (Icn) acc. to AS/NZS 60898 at 230 VAC
25kA
