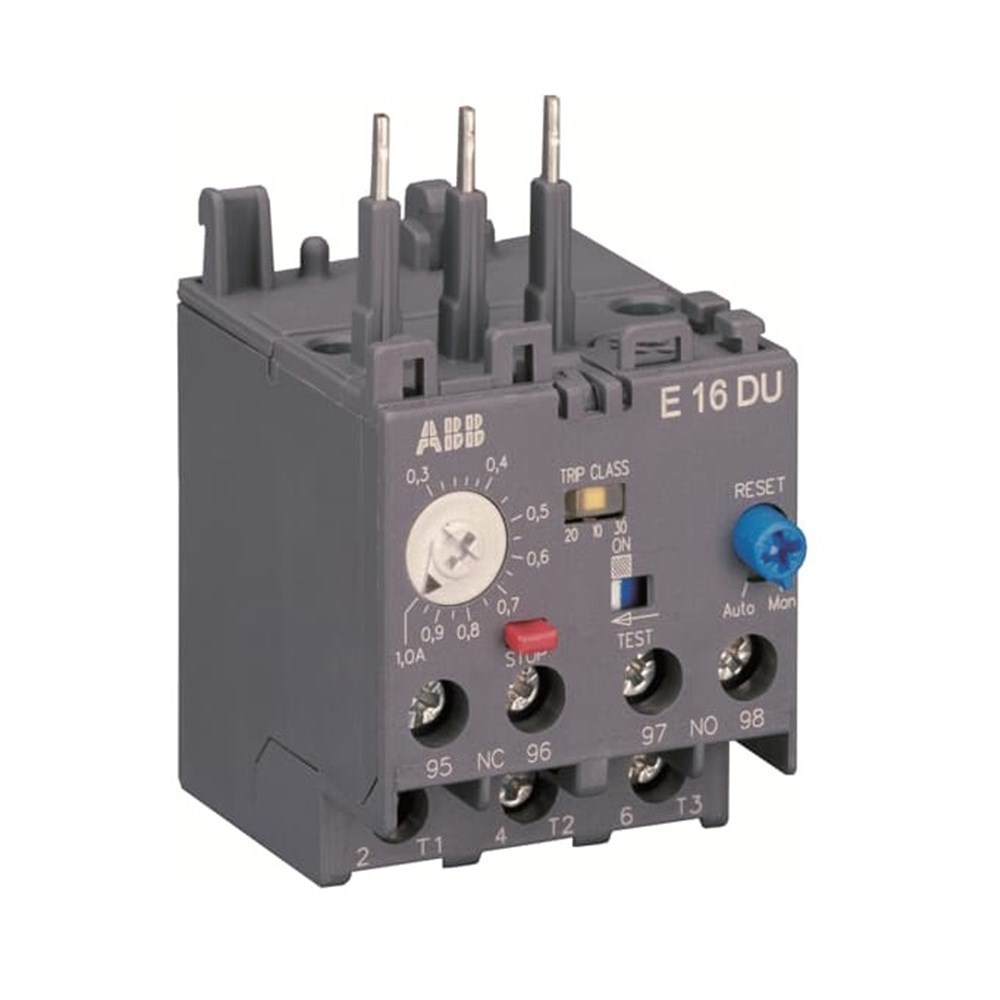

ABB E16DU-6.3 Electronic Overload Relay 2-6.3A 690VAC 20A Fuse Type gG

Product Code: E16DU-6.3

  • Supports voltage up to 690 VAC
  • Operates at 50/60 Hz frequency
  • IP20 protection rating
  • Trip classes: 10E, 20E, and 30E
  • Automatic reset function
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Overload Relays
Brand
ABB

Electrical

Thermal Current Setting Range
2.0 ... 6.3 A
Trip Class
10E, 20E, 30E
Max. Operating Voltage
Main Circuit 600 V AC

Dimensions & Physical Data

Depth
57 mm
Height
74.6 mm
Weight
0.15 kg
Width
44.4 mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1

Accessories & Additional Information

Suitable Product Range
B6 B7 BC6 BC7 A09 A12 A16 AL09 AL12 AL16 VB6 VB7 VBC6 VBC7

Documents

IPD Product Catalogue V17
