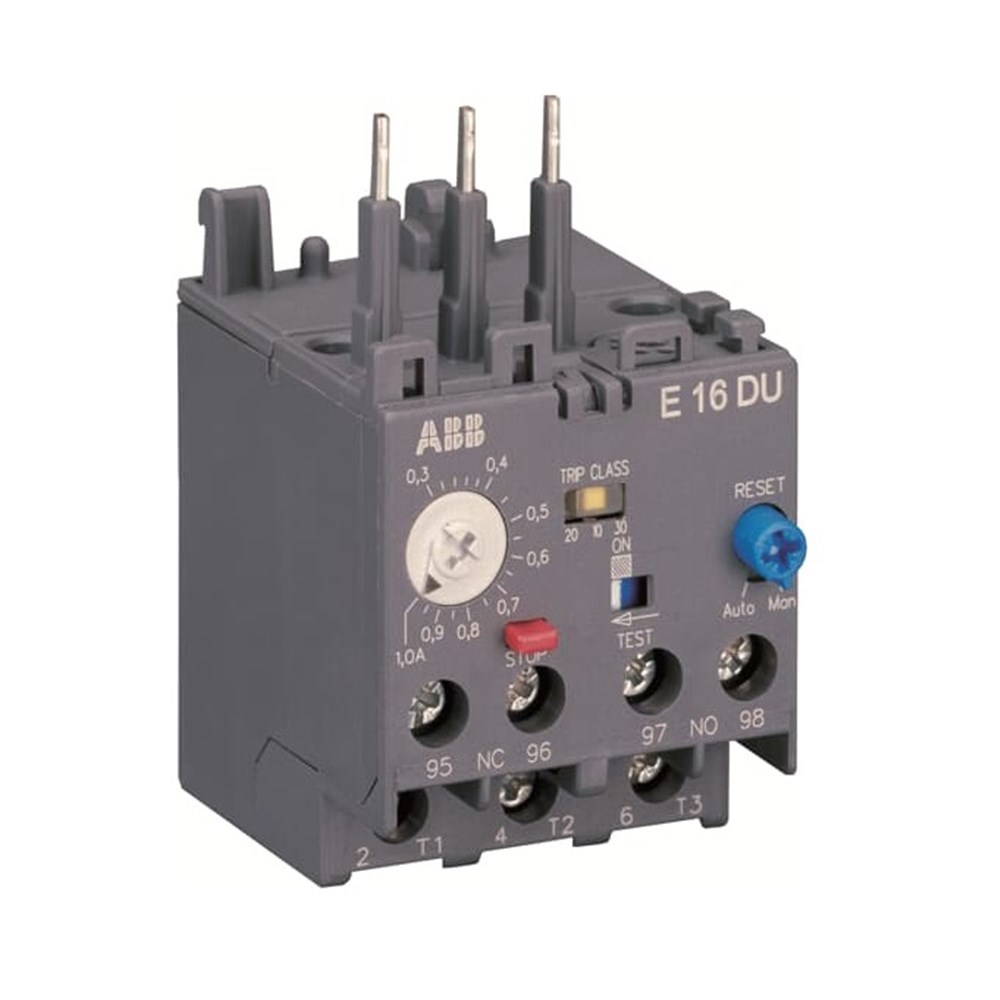

ABB E16DU-2.7 Electronic Overload Relay 0.8-2.7A 690VAC 10A Fuse Type gG

Product Code: E16DU-2.7

  • Rated voltage: 690 VAC
  • Contact config: 1NC+1NO
  • Trip classes: 10E, 20E, 30E
  • Protection: IP20 rated
  • Mounting type: Direct
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Overload Relays
Brand
ABB

Electrical

Thermal Current Setting Range
0.80 ... 2.7 A
Trip Class
10E, 20E, 30E
Max. Operating Voltage
Main Circuit 600 V AC

Dimensions & Physical Data

Depth
57 mm
Height
74.6 mm
Weight
0.15 kg
Width
44.4 mm

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1

Accessories & Additional Information

Suitable Product Range
B6 B7 BC6 BC7 A09 A12 A16 AL09 AL12 AL16 VB6 VB7 VBC6 VBC7
