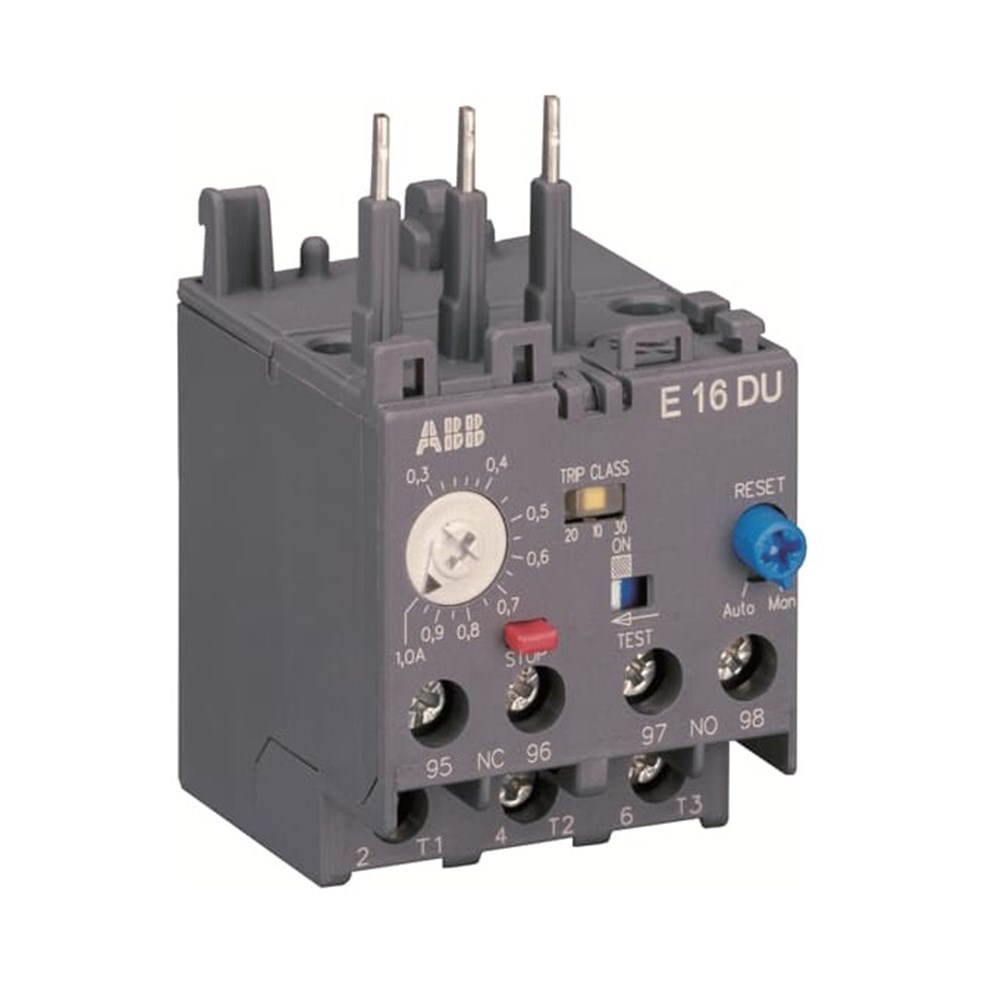

ABB E16DU-18.9 Electronic Overload Relay 5.7-18.9A 690VAC 50A Fuse Type gG

Product Code: E16DU-18.9

  • Rated for 690 VAC, 0.55 A current
  • Trip classes: 10E, 20E, 30E
  • Compact size: W44.4 x H74.6 x D57 mm
  • Operates from -25 to 70°C
  • IP20 protection level
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Electronic Overload Relay
Brand
ABB

Electrical

Max. Operational Voltage
Main Circuit 600 V AC
Thermal Current Setting Range
5.7A to 18.9A
Trip Class
10E, 20E, 30E

Dimensions & Physical Data

Depth
57mm
Height
74.6mm
Weight
0.15kg
Width
44.4mm
Suitable Product Range
B6 B7 BC6 BC7 A09 A12 A16 AL09 AL12 AL16 VB6 VB7 VBC6 VBC7

Safety, Standards & Compliance

Standards and Approvals
IEC/EN 60947-1 IEC/EN 60947-4-1 IEC/EN 60947-5-1 UL 60947-1 UL 60947-4-1

Documents

IPD Product Catalogue V17
