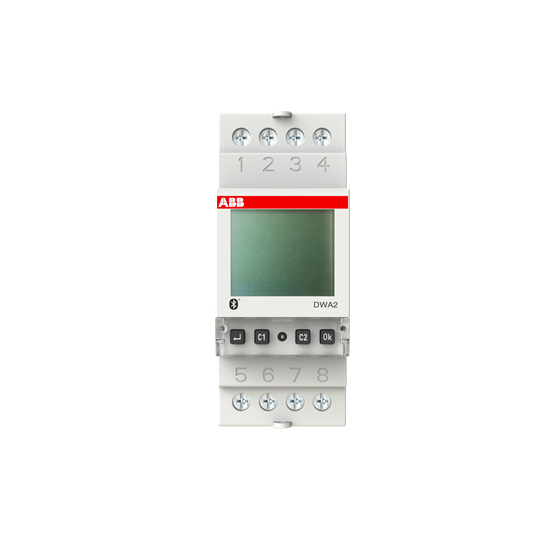

ABB DWA2 Digital Time Switch 1CO 195.5-253VAC 16A

Product Code: DWA2

  • Handles 195.5-253 VAC, 16 A, 4000 W
  • Supports weekly astro function
  • DIN rail mountable; compact size
  • Operating temp: -20 to 50°C
  • Compliant with multiple EN standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Digital Timer
Brand
ABB
Series
DBT

Electrical

Function
Weekly astro
Contact Type
Change-Over (CO)
Rated Operational Voltage (Ue)
230V AC
Accuracy
± 0.5sec/24h
Power Loss
2W
Max. Switching Power
4000W
Battery Life
5 year

Mechanical

Conductor Cross Section Solid Core
Solid 2.5mm²
Max. Load Capacity
16 A 10 A

Dimensions & Physical Data

Depth
87mm
Height
65mm
Weight
0.152kg
Width
35mm
Width in No. of Modular Spacing
2

Environmental

Storage Temperature
-25°C to 70°C
Operating Temperature
-20°C to 50°C
IP Rating
Housing IP20

Communication & Control

No. of Channels
2

Safety, Standards & Compliance

Standards and Approvals
EN 60730-2-7 EN-301 489-17 EN-300 328 EN-62479 EN 50581 CE
