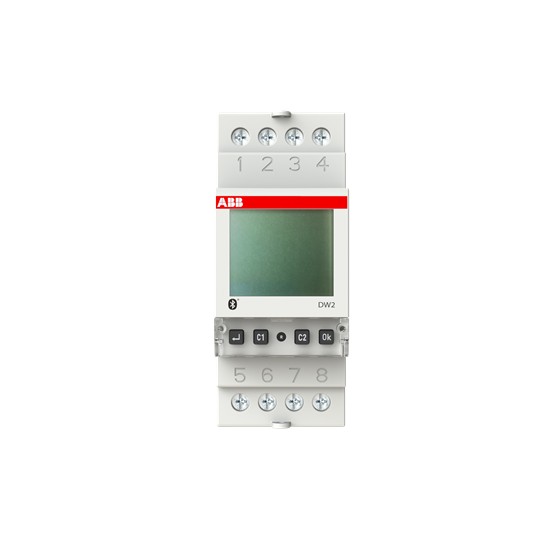

ABB DW2 Digital Time Switch 1CO 195.5-253VAC 16A

Product Code: DW2

  • Supports 195.5-253 VAC, 16 A, 4000 W load
  • Weekly function with 1 min operating time
  • DIN Rail mounting for easy installation
  • Compact size: Width 2 m, Height 65 mm
  • IP20 protection suitable for indoor use
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Digital timer
Brand
ABB
Series
DW

Electrical

Function
Weekly
Channels
2
Contact Type
Change-Over (CO)
Rated Operational Voltage (DC)
230 V AC
Accuracy
± 0.5sec/24h
Power Loss
Total 2 W
Minimum Switching Time
1 min
Max. No. of Programs
120
Max. Switching Power
4000 W
Battery Life
5 year

Dimensions & Physical Data

Depth
87 mm
Height
65 mm
Weight
152 g
Width
35 mm
Width in No. of Modular Spacing
2

Environmental

Storage Temperature
-25 ... +70 °C
Operating Temperature
-20 ... +50 °C
IP Rating
Housing IP20

Safety, Standards & Compliance

Standards and Approvals
EN 60730-2-7EN-301 489-17EN-300 328EN-62479EN 50581

Documents

IPD Product Catalogue V17
