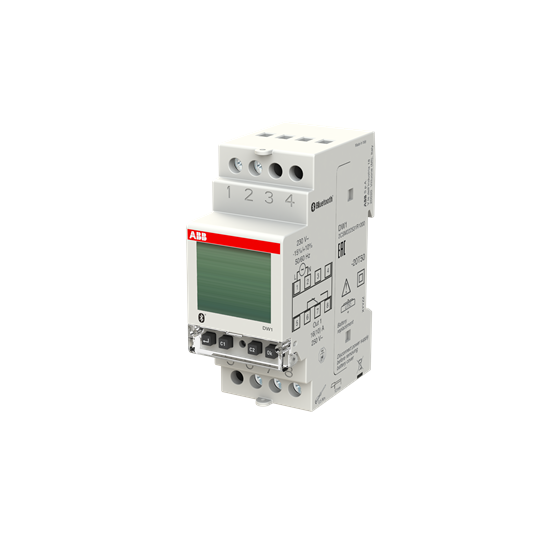

ABB DW1 Digital Time Switch 1CO 195-253VAC 16A

Product Code: DW1

  • Rated for 16 A, 195-253 VAC
  • Supports up to 4000 W power
  • Weekly function with 1 min op time
  • DIN Rail mounting for easy install
  • Complies with multiple EN standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Digital time switch
Brand
ABB
Series
DW

Electrical

Function
Weekly
Contact Type
Change-Over (CO)
Accuracy
±0.5 s/24 h
Communication Protocols
Bluetooth BLE 4.2
Power Loss
2 W
Minimum Switching Time
1 min (1 s pulse program)
Max. No. of Programs
120
Max. Switching Power
4000 W
Rated Operational Voltage (AC/DC)
195.5 to 253 V AC
Battery Life
5 years

Mechanical

Conductor Cross Section Solid Core
2.5 mm²
Max. Load Capacity
2000 W

Dimensions & Physical Data

Depth
87 mm
Height
65 mm
Weight
0.129 kg
Width
35 mm
Width in No. of Modular Spacing
2

Environmental

Storage Temperature
-25 to 70 °C
Operating Temperature
-20 to 50 °C
IP Rating
IP20

Communication & Control

No. of Channels
1

Safety, Standards & Compliance

Standards and Approvals
EN 60730-1; EN 60730-2-7
