Specifications

Product Type

RCBO

Brand

ABB

Series

DSN201

Rated Short-Circuit Breaking Capacity (Icn) acc. To IEC/EN 61009-1

6 kA

Rated Short-Circuit Breaking Capacity (Icu) acc. To IEC/AS/NZS 61009

6 kA

Electrical Endurance 10000	No. of Poles (Total) 1P+N	Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Insulation Voltage (Ui) 500 V AC/DC	Rated Current 20 A	Rated Frequency 50 / 60 Hz
Rated Voltage 230/240 V	Trip Curve C	Terminal Type Fail-safe cage terminals (top/bottom)
Rated Residual Current 30 mA	Type of Residual Current Type A

Conductor Cross Section Flexible 16/16 mm²	Conductor Cross Section Solid Core 25/25 mm²	Housing Type Insulation group I
Mechanical Endurance 20000	Mounting Type DIN rail

Depth 70 mm	Height 86 mm	Weight 0.119 kg
Width 18 mm	Width in No. of Modular Spacing 1	Pole Width 18 mm

Rated Surrounding Temperature without Derating 30°C	Pollution Degree 2	Storage Temperature -40…+70°C
Operating Temperature -25 … 55 °C	IP Rating IP2X, IP4X

IEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1

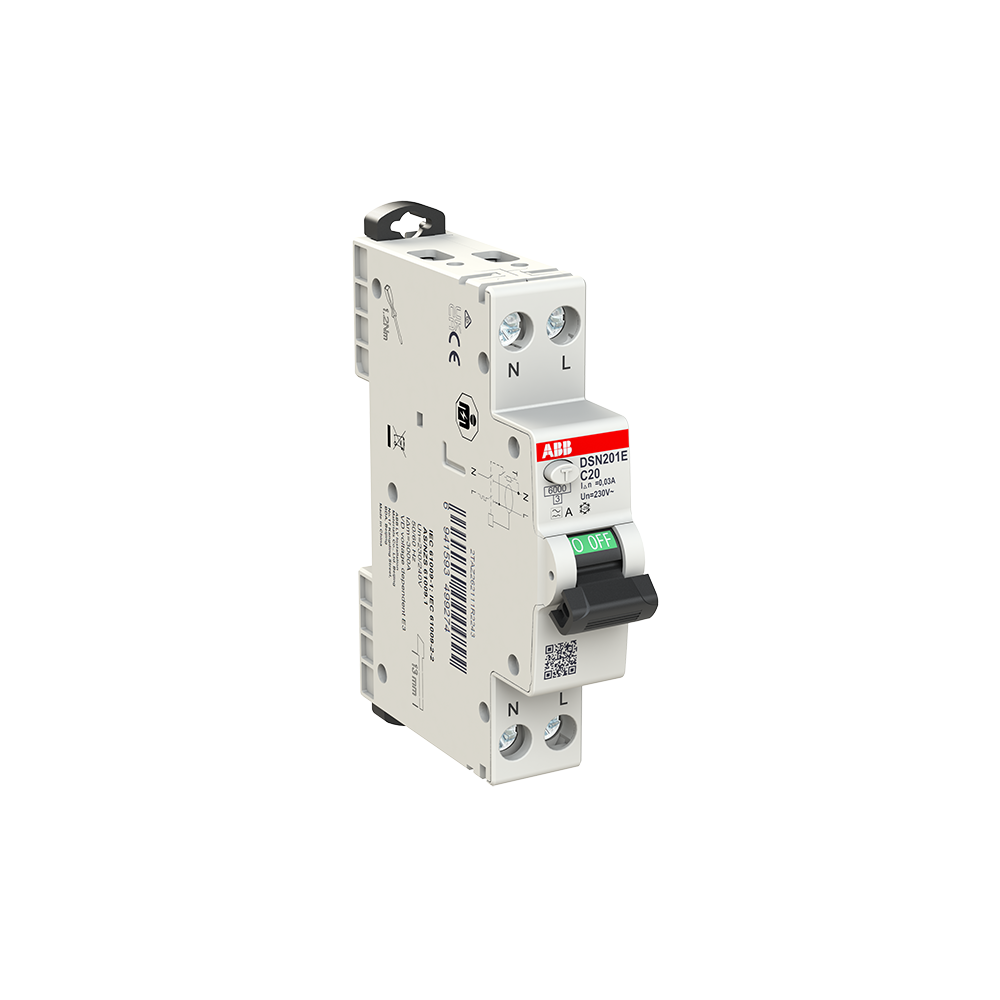

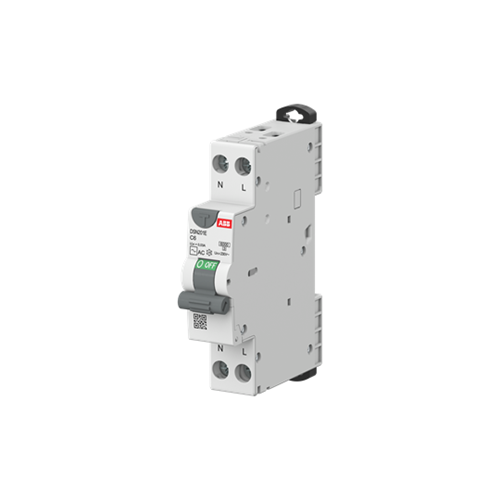

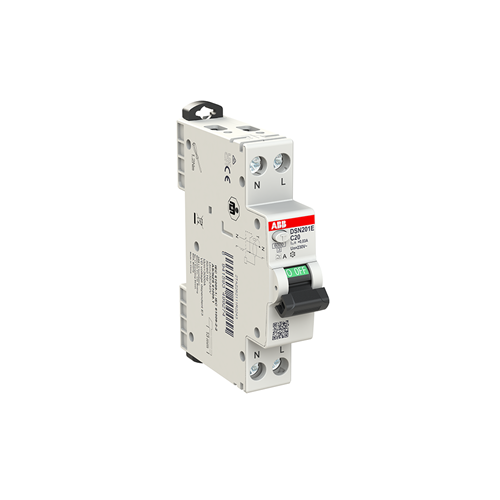

ABB DSN201EC20A30 RESIDUAL CURRENT CIRCUIT BREAKER WITH OVERCURRENT PROTECTION 6 KA 1P+N-P 30MA 20A C-CURVE TYPEA IP20
