Specifications

Product Type

Residual Current Circuit Breakers With Overcurrent Protection RCBO

Brand

ABB

Series

DSE203N M

No. of Poles (Total) 3P+N	Rated Impulse Withstand Voltage (Uimp) 4 kV	Rated Insulation Voltage (Ui) 500 V AC/DC
Power Loss 3.52 W	Rated Current (In) 0.25	Rated Frequency 50/60 Hz
Rated Voltage (Ur) 400/415 V AC	Trip Curve C	Terminal Type Pillar terminals
Residual Current Type Type A	Rated Residual Current 30 mA	Switching Neutral No
Electrical Life 10000 cycle	Mechanical Life 20000 cycle

Conductor Cross Section Flexible

1 to 16 mm²

Conductor Cross Section Solid Core

1 to 25 mm²

Housing Type

Insulation group I

Depth 71.6 mm	Height 117.5 mm	Weight 0.549 kg
Width 53.4 mm	Width in No. of Modular Spacing 3

Rated Surrounding Temperature Without Derating 30 °C	Pollution Degree 2	Storage Temperature -25 to 70 °C
Operating Temperature -5 to 55 °C	IP Rating IP20

Standards and Approvals

IEC 61009-1; IEC 61009-2-2; AS/NZS 61009-1

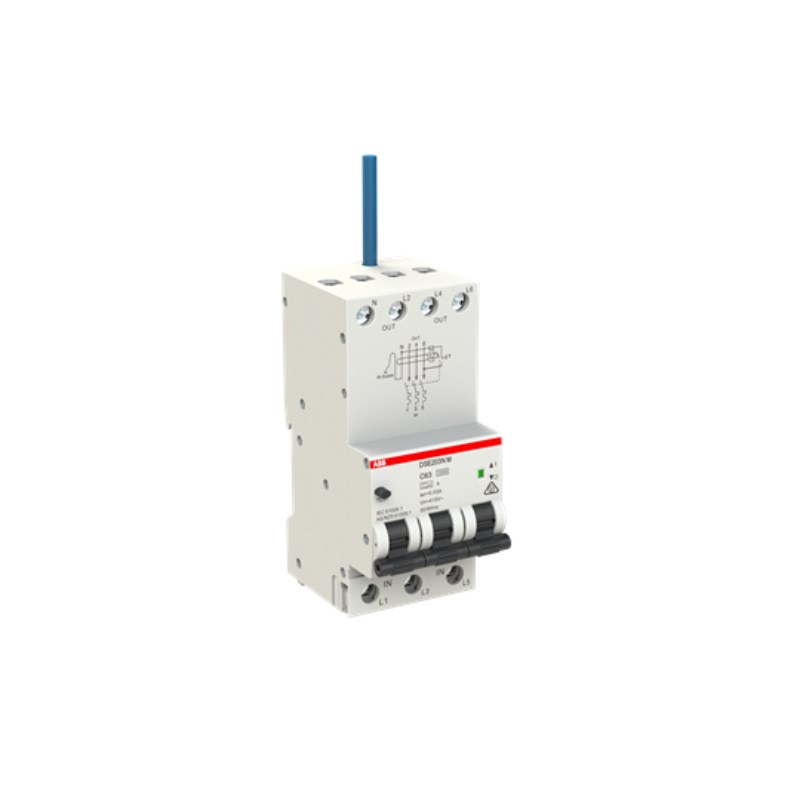

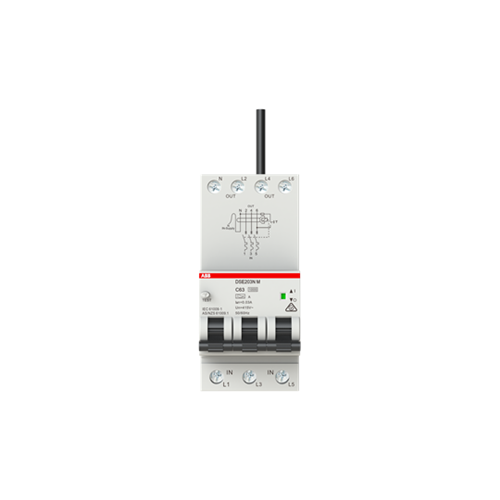

ABB DSE203NMC6A30 Residual Current Circuit Breaker with Overcurrent Protection 10 kA 3P+N-P 30mA 6A C-Curve TypeA IP20
