Specifications

Product Type

RCBO

Brand

ABB

Series

DSE203

Rated Short-Circuit Breaking Capacity (Icn) acc. To IEC/EN 61009-1

10 kA

Electrical Endurance 10000	No. of Poles (Total) 3P+N	Rated Impulse Withstand Voltage (Uimp) 4 kV
Rated Current 25 A	Rated Frequency 50 / 60 Hz	Rated Voltage 415 V AC
Trip Curve C	Terminal Type Pillar terminals	Rated Residual Current 30 mA
Type of Residual Current Type A

Conductor Cross Section Flexible 16/16 mm²	Conductor Cross Section Solid Core 25/25 mm²	Housing Type Insulation group I, RAL 7035
Mechanical Endurance 20000	Mounting Type DIN rail

Depth 72 mm	Height 117.5 mm	Weight 0.549 kg
Width 53.4 mm	Width in No. of Modular Spacing 4	Pole Width 18 mm

Rated Surrounding Temperature without Derating 30°C	Pollution Degree 2	Storage Temperature -40…+70°C
Operating Temperature -25 … 55 °C	IP Rating IP2X, IP4X

IEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1

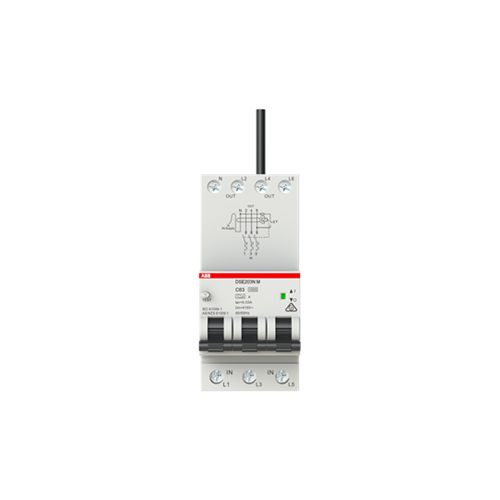

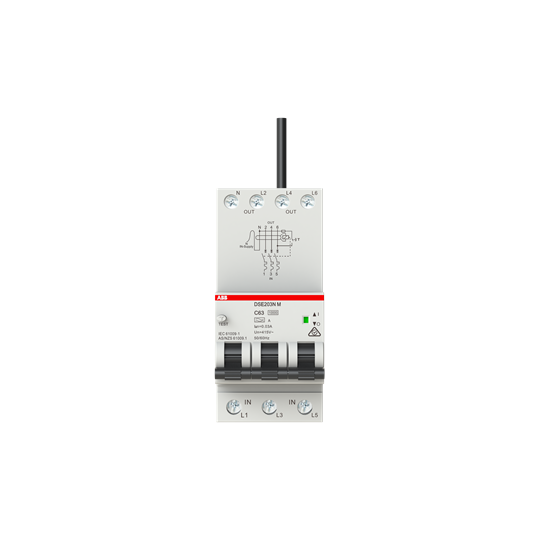

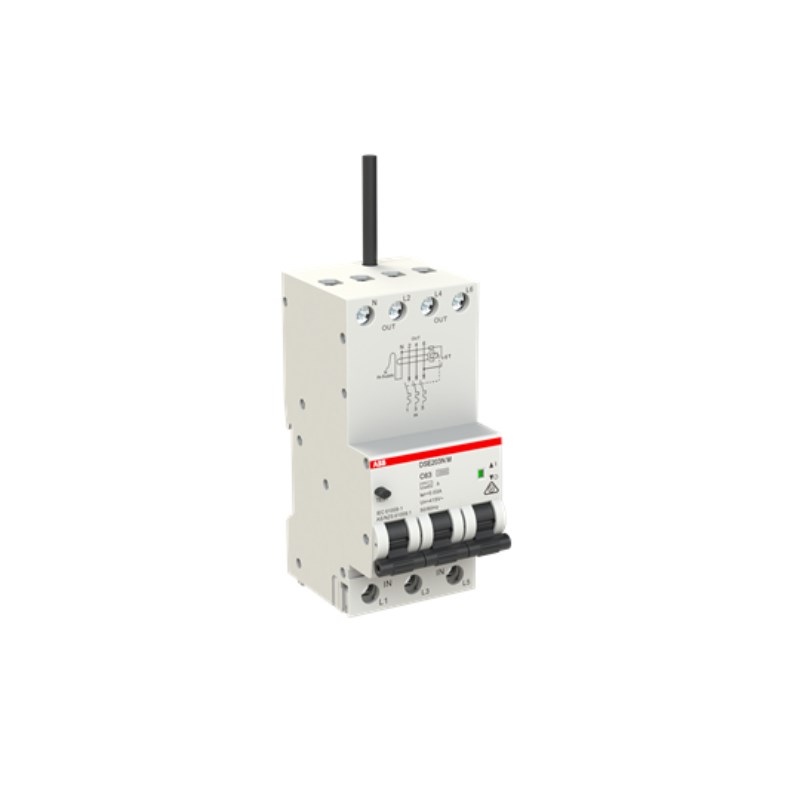

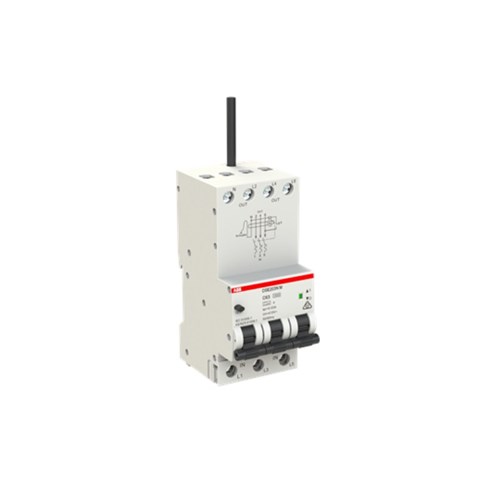

ABB DSE203NMC25A30 Residual Current Circuit Breaker with Overcurrent Protection 10 kA 3P+N-P 30mA 25A C-Curve TypeA IP20
