Specifications

Product Type

RCBO

Brand

ABB

Series

DSE203

No. of Poles (Total) 3P+N	Rated Impulse Withstand Voltage (Uimp) 4 kV	Rated Insulation Voltage (Ui) 500 V
Rated Current (In) 0.416667	Rated Frequency 50 / 60 Hz	Rated Voltage (Ur) 400/415 V AC
Trip Curve C	Terminal Type Pillar terminals	Residual Current Type Type A
Rated Residual Current 30 mA	Electrical Life 10000	Mechanical Life 20000

Conductor Cross Section Flexible 16/16 mm²	Conductor Cross Section Solid Core 25/25 mm²	Housing Type Insulation group I, RAL 7035
Mounting DIN rail

Depth 72 mm	Height 117.5 mm	Weight 0.549 kg
Width 53.4 mm	Width in No. of Modular Spacing 4	Pole Width 18 mm

Rated Surrounding Temperature Without Derating 30°C	Pollution Degree 2	Storage Temperature -40…+70°C
Operating Temperature -25 … 55 °C	IP Rating IP2X, IP4X

Standards and Approvals

IEC 61009-1, IEC 61009-2-2, AS/NZS 61009.1

Rated Short-Circuit Breaking Capacity (Icn) acc. To IEC/EN 61009-1

6 kA

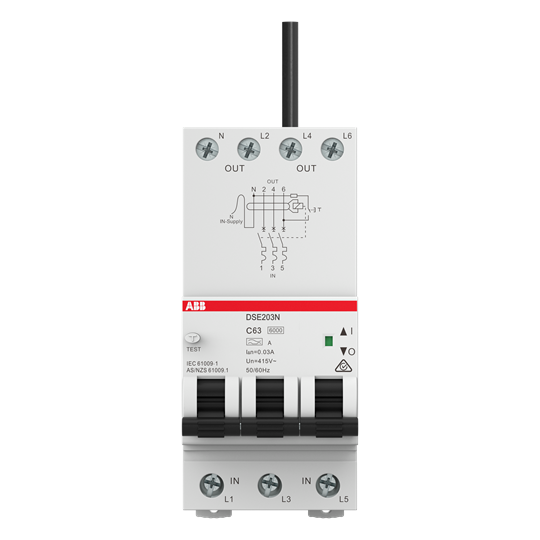

ABB DSE203NC10A30 Residual Current ACB 6 kA 3P+N-P 30mA 10A C-Curve TypeA Chassis Mounting IP20
