Specifications

Product Type

Residual Current Circuit Breakers With Overcurrent Protection RCBO

Brand

ABB

Series

DSE201 M NS

No. of Poles (Total) 1P+N	Rated Impulse Withstand Voltage (Uimp) 4 kV	Rated Insulation Voltage (Ui) 500 V
Power Loss 2.3 W	Rated Current (In) 0.416667	Rated Frequency 50/60 Hz
Rated Voltage (Ur) 230/240 V AC	Trip Curve C	Terminal Type Screw Terminals
Residual Current Type Type A	Rated Residual Current 30 mA	Switching Neutral Yes
Electrical Life 10000 cycle	Mechanical Life 20000 cycle

Conductor Cross Section Flexible

1 to 16 mm²

Conductor Cross Section Solid Core

1 to 25 mm²

Housing Type

Insulation group I

Depth 70 mm	Height 86 mm	Weight 0.166 kg
Width 17.8 mm	Width in No. of Modular Spacing 1

Rated Surrounding Temperature Without Derating 30 °C	Pollution Degree 2	Storage Temperature -25 to 70 °C
Operating Temperature -25 to 55 °C	IP Rating Terminals IP20; Housing IP40

Standards and Approvals

IEC 61009-1; IEC 61009-2-2; AS/NZS 61009.1

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. To IEC/AS/NZS 61009

10 kA

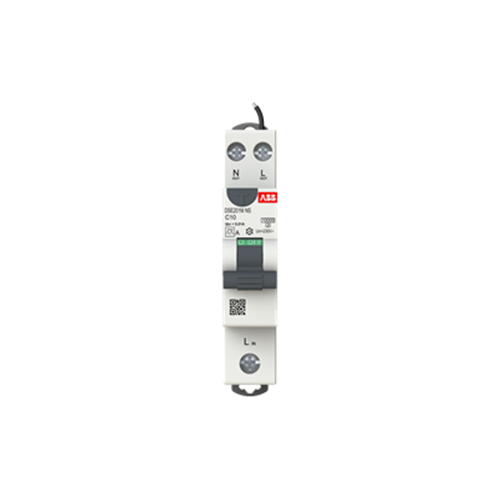

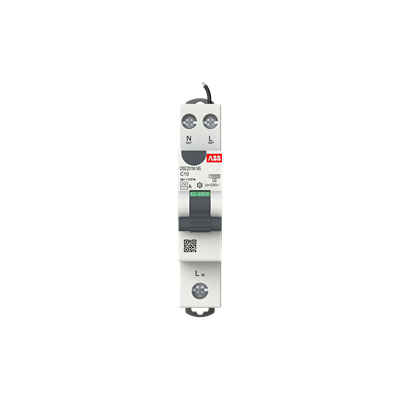

ABB DSE201MC10A30NS Residual Current Circuit Breaker with Overcurrent Protection 10 kA 1P+N-P 30mA 10A C-Curve TypeA IP20
