Specifications

Product Type

RCBO

Brand

ABB

Series

DSE201

No. of Poles (Total) 1P+N	Rated Impulse Withstand Voltage (Uimp) 4kV	Rated Insulation Voltage (Ui) 500V AC/DC
Power Loss 3W	Rated Current (In) 20A	Rated Frequency 50/60Hz
Rated Voltage (Ur) 230/240V	Trip Curve C	Terminal Type Failsafe cage terminal(Top / Bottom)
Residual Current Type Type A	Rated Residual Current 30mA	Electrical Life 10000
Mechanical Life 20000

Conductor Cross Section Flexible 16/25mm²	Conductor Cross Section Solid Core 25/35mm²	Housing Type Insulation group I
Mounting DIN rail

Depth 72mm	Height 86mm	Weight 0.166kg
Width 18mm	Width in No. of Modular Spacing 1	Pole Width 18mm

Rated Surrounding Temperature Without Derating 30°C	Pollution Degree 3	Storage Temperature -40°C to 70°C
Operating Temperature -25°C to 55°C	IP Rating IP2X, IP4X

Standards and Approvals

IEC 60898-1, IEC/EN 60664-1

Rated Short-Circuit Breaking Capacity (Icn) acc. To IEC/EN 61009-1

6kA

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. To IEC/AS/NZS 61009

10kA

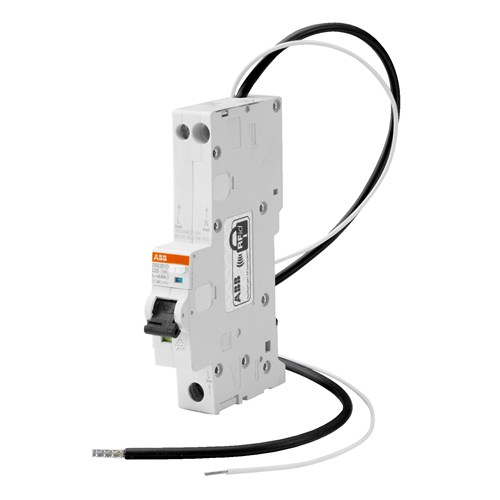

ABB DSE201DC20A30 Residual Current Circuit Breaker with Overcurrent Protection 6 kA 1-P 30mA 20A C-Curve TypeA IP40
