Specifications

Product Type

Residual Current Circuit Breakers With Overcurrent Protection RCBO

Brand

ABB

Series

DSE201 NS

No. of Poles (Total) 1P+N	Rated Impulse Withstand Voltage (Uimp) 4kV	Rated Insulation Voltage (Ui) 500V
Power Loss 3.8W	Rated Current (In) 20A	Rated Frequency 50/60Hz
Rated Voltage (Ur) 230/240V AC	Trip Curve C	Terminal Type Screw Terminals
Residual Current Type Type A	Rated Residual Current 10mA	Switching Neutral Yes
Electrical Life 10000 cycle	Mechanical Life 20000 cycle

Conductor Cross Section Flexible

1mm² to 16mm²

Conductor Cross Section Solid Core

1mm² to 25mm²

Housing Type

Insulation group I

Depth 70mm	Height 86mm	Weight 0.166kg
Width 17.8mm	Width in No. of Modular Spacing 1

Rated Surrounding Temperature Without Derating 30°C	Pollution Degree 2	Storage Temperature -25°C to 70°C
Operating Temperature -25°C to 55°C	IP Rating Terminals IP20; Housing IP40

Standards and Approvals

IEC 61009-1; IEC 61009-2-2; AS/NZS 61009.1

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. To IEC/AS/NZS 61009

6kA

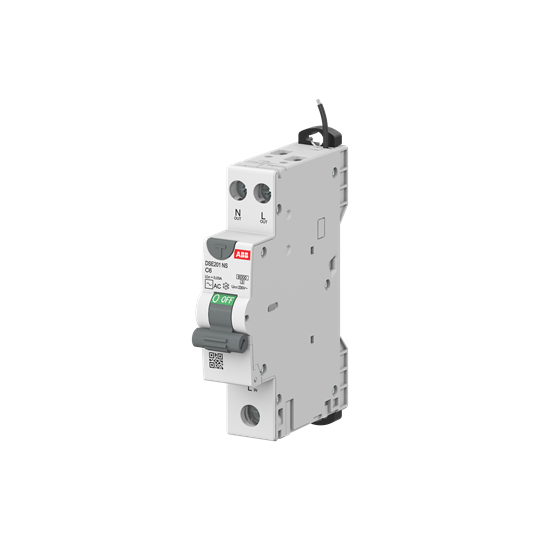

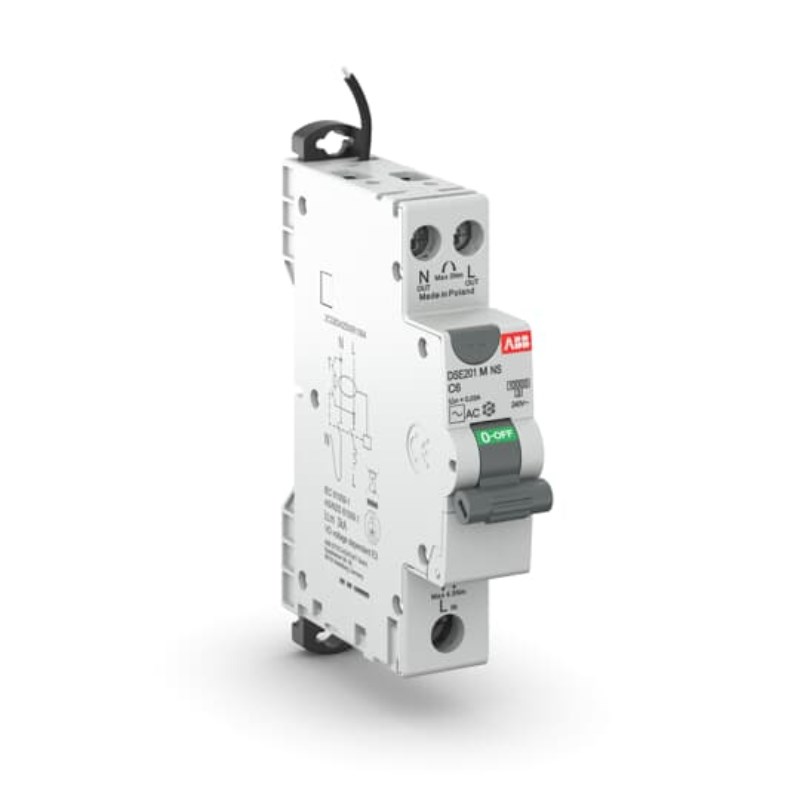

ABB DSE201C20A10NS Residual Current Circuit Breaker with Overcurrent Protection 6 kA 1P+N-P 10mA 20A C-Curve TypeA IP20
