Specifications

Product Type

RCBO

Brand

ABB

Series

DS203

No. of Poles (Total) 3P+N	Rated Impulse Withstand Voltage (Uimp) 4kV	Rated Insulation Voltage (Ui) 500V
Power Loss 15.1W	Rated Current (In) 32A	Rated Frequency 50/60Hz
Rated Voltage (Ur) 415V	Trip Curve C	Residual Current Type Type A
Rated Residual Current 30mA	Electrical Life 10000	Mechanical Life 20000

Conductor Cross Section Flexible

25mm²

Conductor Cross Section Solid Core

25mm²

Mounting

DIN rail

Depth 69mm	Height 85mm	Weight 0.48kg
Width 71mm	Width in No. of Modular Spacing 4	Pole Width 18mm

Rated Surrounding Temperature Without Derating 30°C	Pollution Degree 2	Storage Temperature -40°C to 70°C
Operating Temperature -25°C to 55°C	IP Rating IP2X, IP4X

Standards and Approvals

IEC 60898-1, IEC/EN 60664-1

Rated Short-Circuit Breaking Capacity (Icn) acc. To IEC/EN 61009-1

6kA

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. To IEC/AS/NZS 61009

10kA

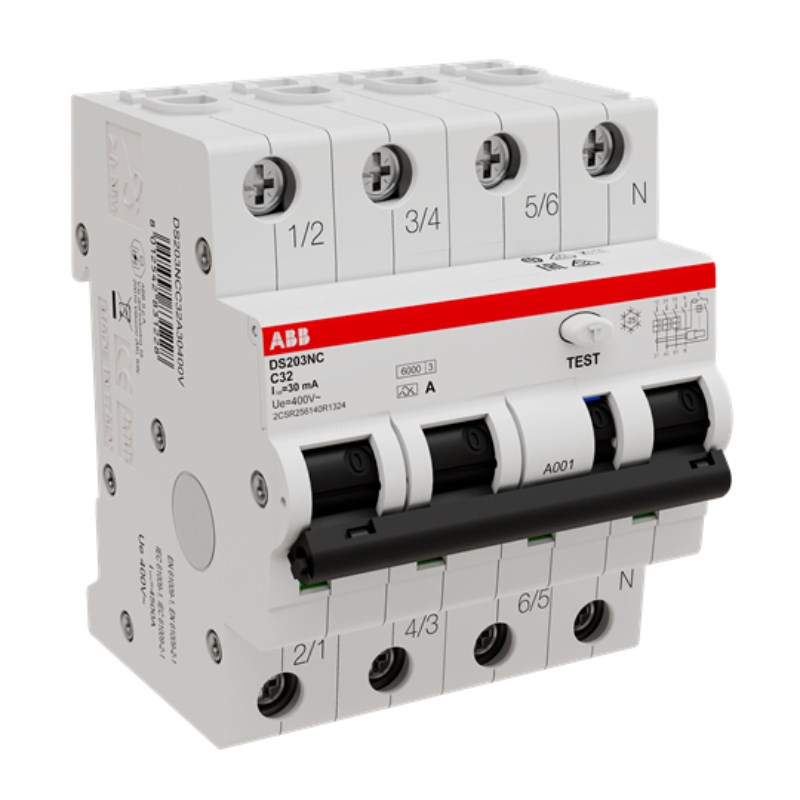

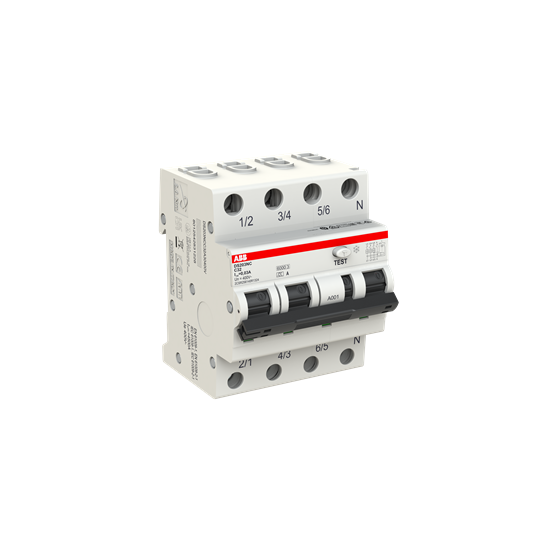

ABB DS203NCC32A30 Residual Current Circuit Breaker with Overcurrent Protection 6 kA 4-P 30mA 32A C-Curve TypeA IP2X
