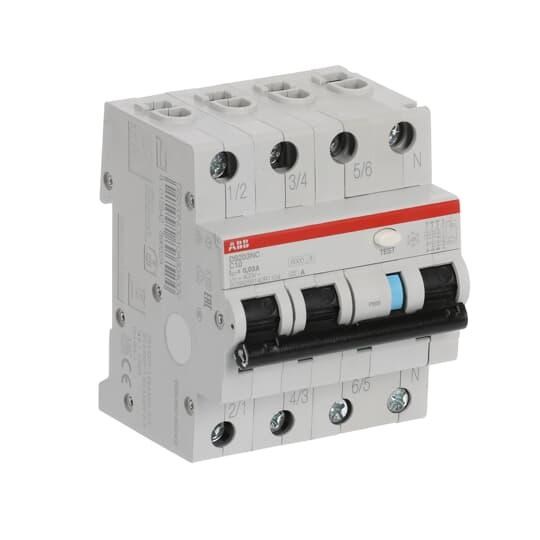

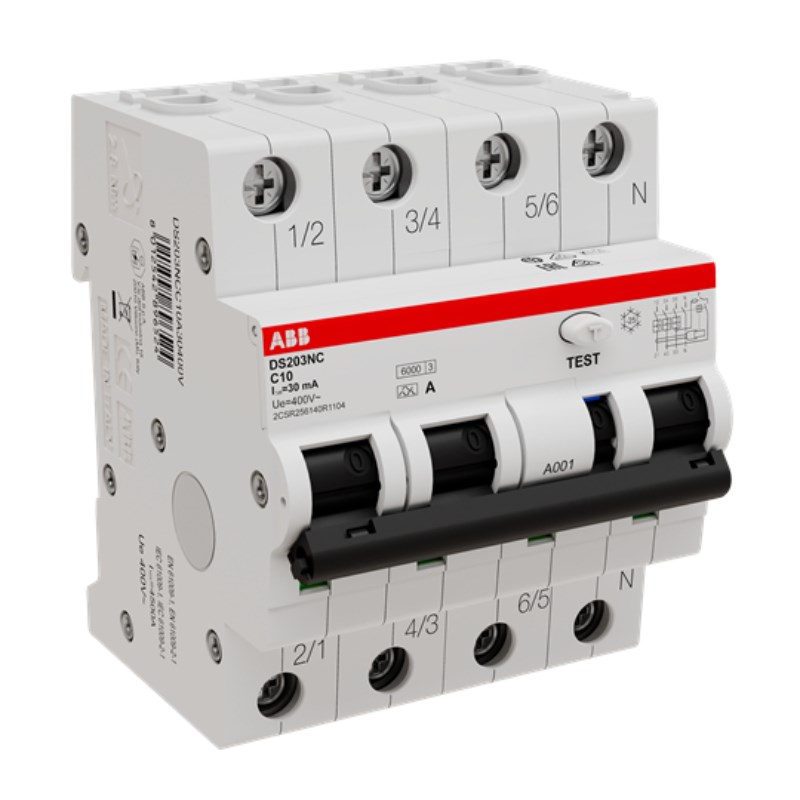

ABB DS203NCC10A30 Residual Current Circuit Breaker with Overcurrent Protection 6 kA 4-P 30mA 10A C-Curve TypeA IP2X

Product Code: DS203NCC10A30

  • 4-pole RCBO with 6kA breaking capacity
  • Rated for 10 A current and 415 V voltage
  • Meets IEC & EN standards for safety
  • Compact size: 71mm wide, 85mm high, 69mm deep
  • Suitable for ambient temps from -25 to 55°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
RCBO
Brand
ABB
Series
DS203

Electrical

No. of Poles (Total)
3P+N
Rated Impulse Withstand Voltage (Uimp)
4kV
Rated Insulation Voltage (Ui)
500V
Power Loss
5.6W
Rated Current (In)
10A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
415V
Trip Curve
C
Residual Current Type
Type A
Rated Residual Current
30mA
Electrical Life
10000
Mechanical Life
20000

Mechanical

Mounting
DIN rail

Dimensions & Physical Data

Depth
69mm
Height
85mm
Weight
0.48kg
Width
71mm
Width in No. of Modular Spacing
4
Pole Width
18mm

Environmental

Rated Surrounding Temperature Without Derating
30°C
Pollution Degree
2
Storage Temperature
-40°C to 70°C
Operating Temperature
-25°C to 55°C
IP Rating
IP2X, IP4X

Safety, Standards & Compliance

Standards and Approvals
IEC 60898-1, IEC/EN 60664-1

Other

Rated Short-Circuit Breaking Capacity (Icn) acc. To IEC/EN 61009-1
6kA
Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. To IEC/AS/NZS 61009
10kA
