Specifications

Product Type

RCBO

Brand

ABB

Series

DS202CR

No. of Poles (Total) 1P+N	Rated Impulse Withstand Voltage (Uimp) 4kV	Rated Insulation Voltage (Ui) 440V
Power Loss 7.6W	Rated Current (In) 32A	Rated Frequency 50/60Hz
Rated Voltage (Ur) 240V	Trip Curve C	Terminal Type Failsafe cage terminal(Top / Bottom)
Residual Current Type Type APR	Rated Residual Current 30mA	Electrical Life 10000
Mechanical Life 20000

Mounting

DIN rail

Depth 72mm	Height 86mm	Weight 0.22kg
Width 36mm	Width in No. of Modular Spacing 2	Pole Width 18mm

Rated Surrounding Temperature Without Derating 30°C	Pollution Degree 3	Storage Temperature -40°C to 70°C
Operating Temperature -25°C to 55°C	IP Rating IP2X, IP4X

Standards and Approvals

IEC 60898-1, IEC/EN 60664-1

Rated Short-Circuit Breaking Capacity (Icn) acc. To IEC/EN 61009-1

6kA

Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. To IEC/AS/NZS 61009

10kA

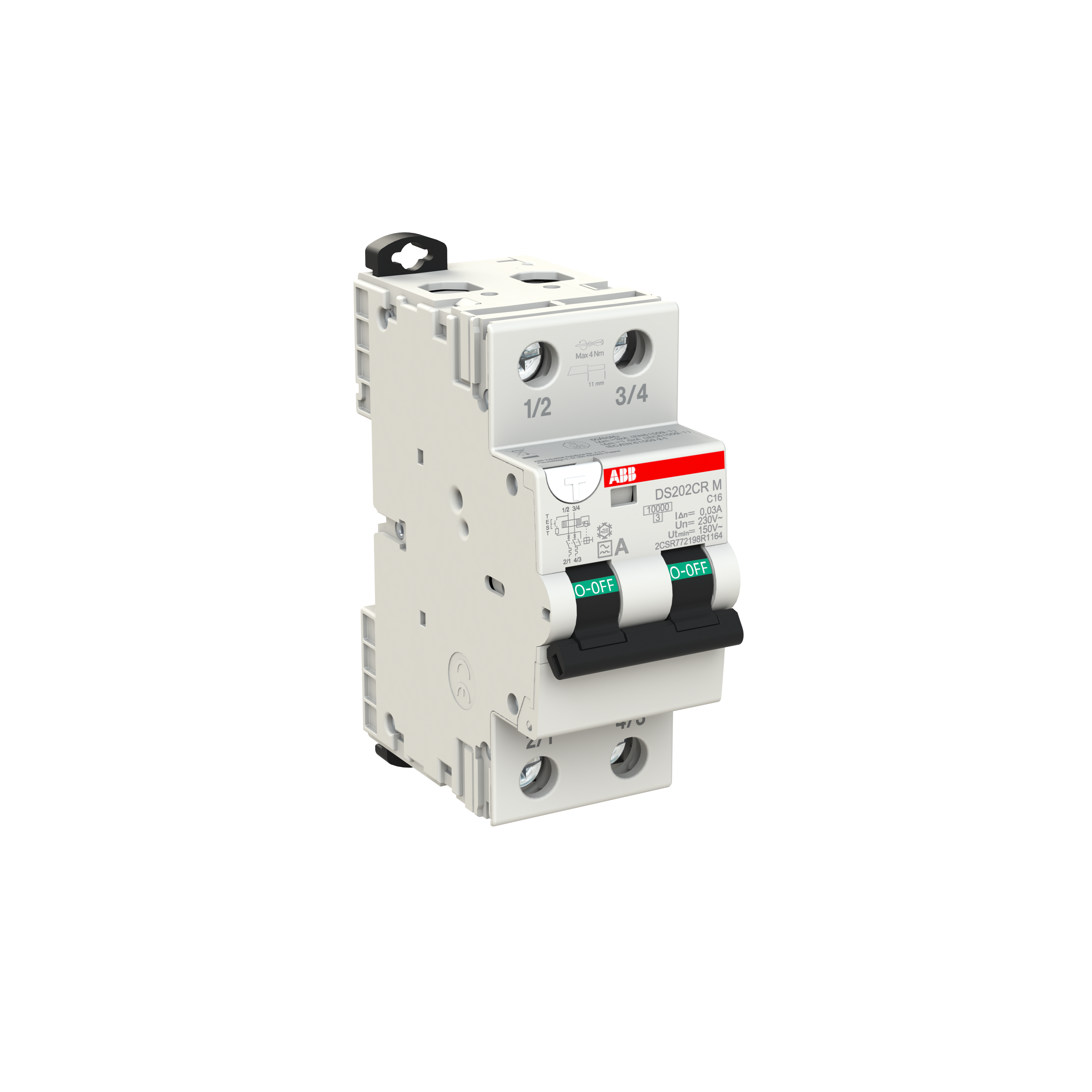

ABB DS202CRC32APR30 Residual Current Breaker with Overcurrent 6 kA 2-P 30mA 32A C-Curve
