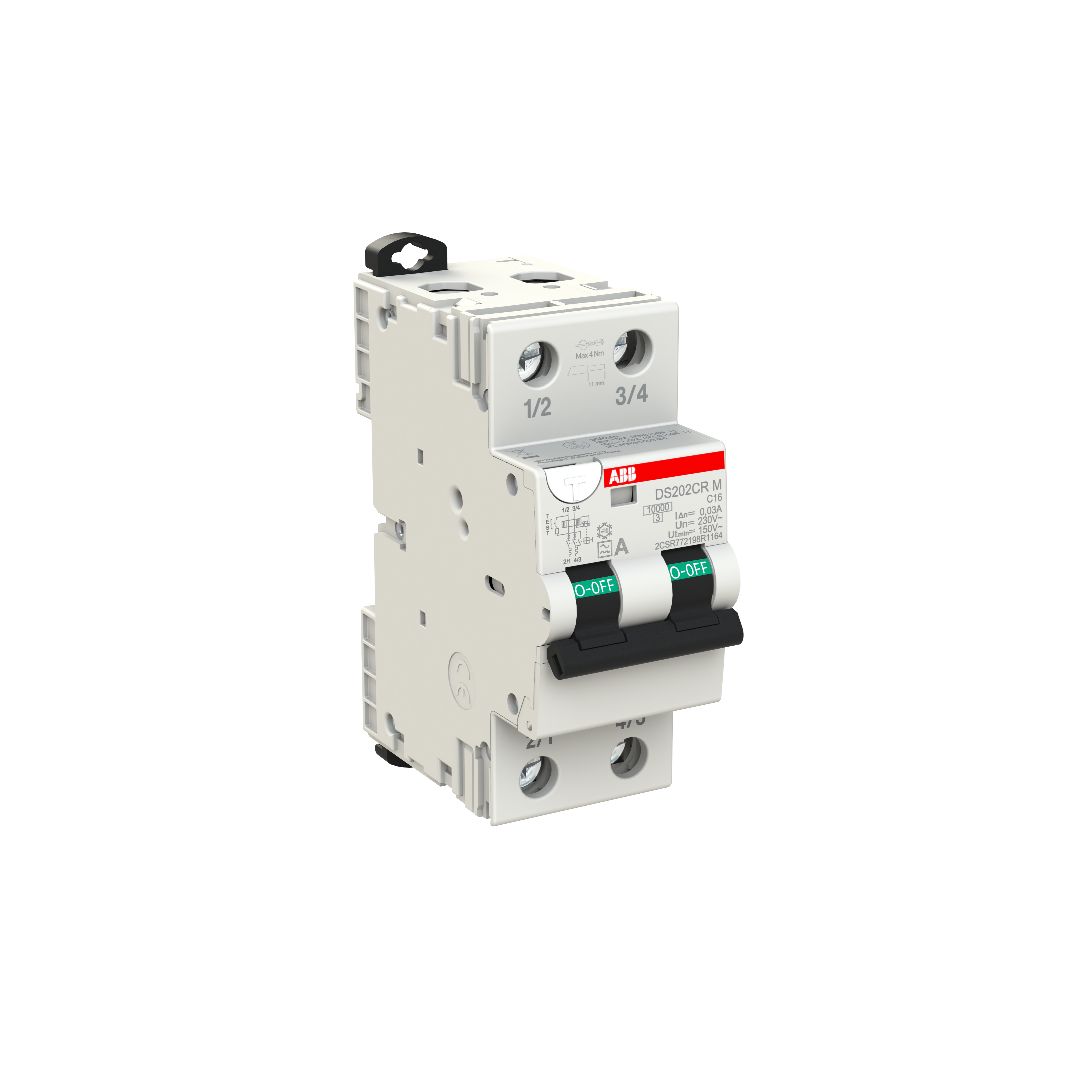

ABB DS202CRC25APR30 Residual Current Breaker with Overcurrent 6 kA 2-P 30mA 25A C-Curve

Product Code: DS202CRC25APR30

  • Rated current: 25A, suitable for moderate loads
  • Dual-pole design for enhanced safety
  • Handles short circuits up to 6kA efficiently
  • C curve type for balanced protection
  • Includes 30mA rated short circuit current
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
RCBO
Brand
ABB
Series
DS202CR

Electrical

No. of Poles (Total)
1P+N
Rated Impulse Withstand Voltage (Uimp)
4kV
Rated Insulation Voltage (Ui)
440V
Power Loss
6.2W
Rated Current (In)
25A
Rated Frequency
50/60Hz
Rated Voltage (Ur)
240V
Trip Curve
C
Terminal Type
Failsafe cage terminal(Top / Bottom)
Residual Current Type
Type APR
Rated Residual Current
30mA
Electrical Life
10000
Mechanical Life
20000

Mechanical

Mounting
DIN rail

Dimensions & Physical Data

Depth
72mm
Height
86mm
Weight
0.22kg
Width
36mm
Width in No. of Modular Spacing
2
Pole Width
18mm

Environmental

Rated Surrounding Temperature Without Derating
30°C
Pollution Degree
3
Storage Temperature
-40°C to 70°C
Operating Temperature
-25°C to 55°C
IP Rating
IP2X, IP4X

Safety, Standards & Compliance

Standards and Approvals
IEC 60898-1, IEC/EN 60664-1

Other

Rated Short-Circuit Breaking Capacity (Icn) acc. To IEC/EN 61009-1
6kA
Rated Ultimate Short Circuit Breaking Capacity (Icu), acc. To IEC/AS/NZS 61009
10kA
